Compared with CS100, CS100E includes EIS technique in the software. Others places are the same.

The CS100E is internally powered by a lithium battery, which can be placed in a glove box or used outdoors. The lithium battery can be charged in advance, and the Type-C interface is used for charging and communication. The circuit adopts a floating-ground design, and the electrochemical parameters of the grounding system can be measured without an isolation transformer.
CS100E portable potentiostat is mainly used for battery testing, electro-analytical chemistry, and corrosion electrochemical testing. The voltage control range is ±10V, compliance voltage is ±12V, the current output range is ±45mA, and the minimum current resolution can reach 100fA.

Applications
The small and convenient potentiostat can be used for performance testing of battery materials in the glove box;
Ultra-low detection limit of heavy metal ions, suitable for water quality testing in environmental protection;
High current accuracy, suitable for small current detection in biosensor;
Comprehensive functions, can be used for the active ingredients detection in food and drug field;
Easy to carry, suitable for bridge corrosion and soil corrosion measurements

Overview
The CS100E portable potentiostat is composed of DDS digital signal synthesizer, constant potential control, dual-channel high-speed 16bit/high-precision 24bit AD converter. The built-in DDS and dual-channel signal correlation integral circuit improves the measurement accuracy of AC impedance. The EIS frequency range is 10μHz~1MHz. It can automatically perform electrochemical impedance test under open circuit potential or any DC bias voltage. Built-in DC offset compensation circuit can effectively improve the measurement accuracy of AC signals. The amplitude of the exciting sine wave can be set between 0 ~±2.5V. The EIS data format is compatible with ZView, and ZView can be directly used for impedance spectrum analysis. CS100E potentiostat can also output sine wave, square wave, triangle wave, sawtooth wave, pulse wave, etc., and the output frequency is 0~100KHz.
CS Studio software also has a complete data analysis function, which can achieve the volt-ampere curve smoothing, the peak height and area integration, and the electrochemical parameters analysis of the polarization curve, including polarization resistance Rp, Tafel slope ba, bc, and corrosion current density icorr, corrosion rate calculation, etc., noise resistance Rn and power spectrum can also be calculated, and the graph can be copied to other files in vector mode.

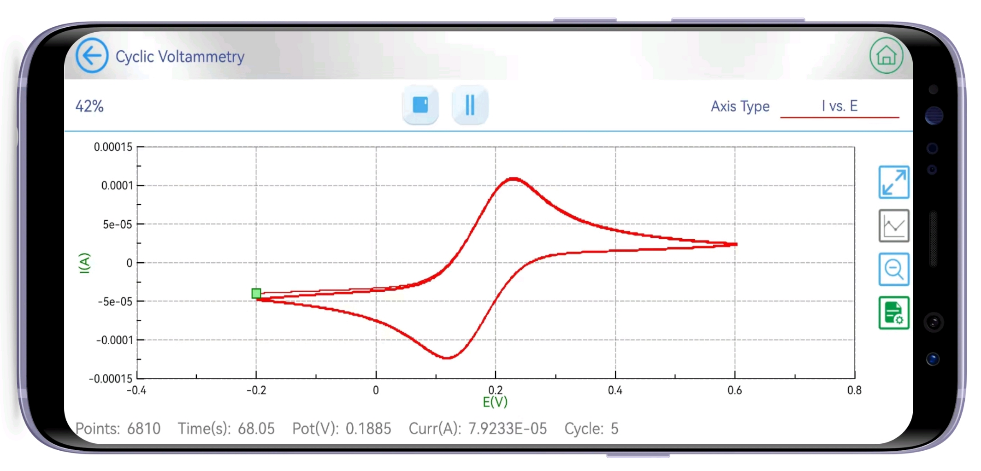

The CS100E portable can be controlled by either our desktop software or App.

The command control and data analysis of the CS100E portable potentiostat are realized through the CS Studio software. The software has multi-coordinate graphic display and zooming, data/graphic storage/printing, and interactive help. The software has techniques for materials and corrosion electrochemistry, including automatic or manual reverse sweep of passivation curve, electrochemical reactivation method, solution resistance (IR drop) measurement and compensation.

Specifications

Communication: USB or Bluetooth
Power supply: built-in li-battery 6000mAH@3.7V / USB
Size / weight:150mm x 90mm x 30mm, 500g
Support 2-, 3-or 4-electrode system
Potential control range: ±10V
Maximum current: ± 45mA
EIS frequency range: 10μHz ~ 1MHz
Compliance voltage: ±12V
Potential accuracy: 0.1%× full range
Minimum potential resolution: 10mV
Current accuracy: 0.1%× full range
Minimum current resolution: 100fA
Potential range: ±2.5V, ±5V, ±10V
Current range: 200pA~50mA, 10 ranges
(200pA, 2nA, 20nA, 200nA, 2uA, 20uA, 200uA, 2mA, 20mA, 50mA)
Reference electrode input impedance: 1013Ω||8pF
AC amplitude: 0~±2.5V
Signal response bandwidth: 1MHz
Max. acquisition rate: 150,000 data points/s
CV and LSV scan rate: 0.001mV~ 10V/s


Techniques

Stable polarization
Open Circuit Potential (OCP)
Potentiostatic (I-T curve)
Galvanostatic
Potentiodynamic (Tafel plot)
Galvanodynamic (DGP)
Transient Polarization
Multi Potential Steps
Multi Current Steps
Potential Stair-Step (VSTEP)
Galvanic Stair-Step (ISTEP)
Chrono Method
Chronopotentiometry (CP)
Chronoamperametry (CA)
Chronocaulometry (CC)
Voltammetry
Linear Sweep Voltammetry (LSV)
Cylic Voltammetry (CV)
Staircase Voltammetry (SCV)
Square Wave Voltammetry (SWV)
Differential Pulse Voltammetry (DPV)
Normal Pulse Voltammetry (NPV)#
Differential Normal Pulse Voltammetry (DNPV)
AC Voltammetry (ACV)
2nd harmonic AC Voltammetry (SHACV)
Fourier Transform AC Voltammetry (FTACV)
Amperometric
Differential Pulse Amperometry (DPA)
Double Differential Pulse Amperometry (DDPA)
Triple Pulse Amperometry (TPA)
Integrated Pulse Amperometric Detection (IPAD)
Stripping Voltammetry
Potentiostatic Stripping
Linear Stripping
Staircase Stripping
Square Wave Stripping
Differential Pulse Voltammetry Stripping
Normal Pulse Voltammetry Stripping
Differential Normal Pulse Voltammetry Stripping
Electrochemical Impedance Spectroscopy (EIS)
EIS vs Frequency (IMP)
EIS vs Time (IMPT)
EIS vs Potential (IMPE)(Mott-Schottky)
Corrosion Measurements
Cyclic polarization curve (CPP)
Linear polarization curve (LPR)
Electrochemical Potentiokinetic Reactivation (EPR)
Electrochemical Noise (EN)
Zero resistance Ammeter (ZRA)
Battery test
Battery Charge and Discharge
Galvanostatic Charge and Discharge (GCD)
Potentiostatic Charging and Discharging(PCD)
Potentiostatic Intermittent Titration Technique(PITT)
Galvanostatic Intermittent Titration Technique(GITT)
Extensions
Data Logger
Electrochemical Stripping/ Deposition
Bulk Eletrolysis with Coulometry (BE)
Rs measurement
