Technical Specifications

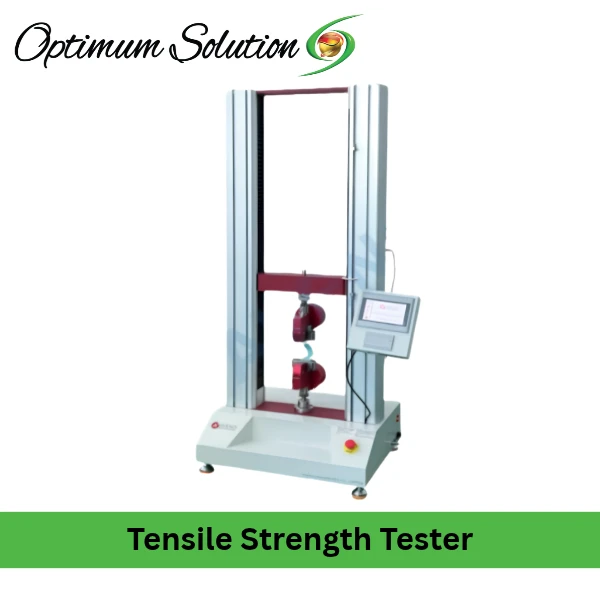

The AG01 is a double-column universal testing machine from AVENO, built for static load, tensile, compression, bending, shear, tear, and peel testing on a wide range of materials. It runs on the constant rate of extension (CRE) principle with an AC servo motor and precision ball screw drive, controlled from a 5.7-inch touchscreen with a built-in printer and online communication support. Force capacity is selected at order from 500 N to 10 kN, and test speed is settable from 0.001 to 1000 mm/min. The specifications below cover the standard unit; grips, load cell capacity, and the optional desktop computer are selected per application.

Model/Part Number: AG01

Force and Test Performance

• Max capacity options: 500 N, 1 kN, 2 kN, 5 kN, 10 kN

• Test principle: constant rate of extension (CRE)

• Test range: 1%–100% of full capacity

• Force resolution: 1/100,000

• Force accuracy: ≤ ±0.2% F*S

• Stroke resolution: 0.001 mm

• Test speed: 0.001–1000 mm/min, settable

• Max stroke: 1100 mm (excluding grips); custom lengths available

• Gantry width: 400 mm

• Force unit switch: kgf, N, lbf, g, ton, MPa, free conversion

Drive and Control

• Control mode: computer control with touchscreen display

• Display: 5.7-inch touchscreen

• Drive: AC servo motor, synchronous wheel and precision ball screw

• Printer: built-in

• Communication: online communication supported

• Remote control: tablet, wireless Wi-Fi, or Android phone

Software Analysis Functions

• Fracture point, break-off point, yield point analysis

• Initial modulus and elastic-plastic deformation analysis

• Whole-curve fixed-point amplification

• Fixed-point test data query

Safety and Protection

• Upper beam and lower limit position protection

• Fixture protection device

• Settable displacement and load limit software protection

• Sensor overload protection

• Sample load software protection

• Overcurrent and overvoltage protection

• Real-time monitoring of main components

Physical and Electrical

• Column material: aluminium alloy profile

• Dimensions: 82 x 63 x 180 cm

• Weight: 120 kg

• Power supply: AC 220 V, 50/60 Hz

• Brand: AVENO

• Origin: China

Standards Referenced

• ISO, EN, ASTM, AATCC, M&S, JIS

Certification

• CE

• ISO 9001

• ISO 17025

Standard Accessories Included:

• AG01 universal tensile strength tester base unit

• Manual grips, 1 set

• English operation software, 1 pc

• PC connection cable, 1 pc

• Load cell, 1 pc

• Power cable

• Operating manual

Items Excluded:

• Desktop computer (HP option available)

• Additional grips for specific sample geometries

• Alternative load cell capacities

• Pneumatic grips

Pre-installation Requirement:
Place the tester on a rigid, level floor or bench capable of supporting 120 kg plus the sample and grips, with clearance for the 1100 mm stroke and access to the front and rear of the gantry. Connect to a grounded AC 220 V, 50/60 Hz supply. Install the operating software on the control computer before the first test. Fit the load cell and grips appropriate to the sample before powering up, and confirm the displacement and load limits are set before the first run.

---

Why This Testing Machine Belongs in a Materials Lab

A universal testing machine earns its place by covering more than one test type without becoming a compromise on any of them. The AG01 universal tensile strength tester runs tensile, compression, bending, shear, tear, and peel tests on the same double-column frame, with a 400 mm gantry width and 1100 mm stroke that accept fabric, yarn, leather, rubber, plastic film, wire, cable, and steel samples. One machine covers the mechanical testing needs of a multi-material lab.

The CRE principle with an AC servo drive is what makes the results transferable. Speed is settable from 0.001 to 1000 mm/min, force resolution is 1/100,000, and force accuracy holds at ±0.2% of full scale. When a test method specifies a crosshead speed and a force range, the AG01 can be set to match, and the recorded curve reflects the method rather than the machine's limitations.

The safety architecture matters more than it looks on a 10 kN machine. Upper and lower limit position protection, fixture protection, settable displacement and load limits, sensor overload protection, and overcurrent and overvoltage protection all run in parallel. On a machine that can apply 10 kN to a sample, the protection layers are not a feature list; they are what allows an operator to run the test without watching the load cell.

For buyers sourcing through OS4U, the configuration questions are load cell capacity, grip selection for your sample types, whether pneumatic grips belong in the order, and whether the HP desktop computer option is needed for the software. The AVENO AG01 product page lists the current accessories.

---

Key Benefits

One frame, six test types

The AG01 double-column universal testing machine runs tensile, compression, bending, shear, tear, and peel tests. A multi-material lab does not need a separate machine for each test type.

Force accuracy that holds across the range

±0.2% of full scale accuracy with 1/100,000 force resolution. The test range covers 1% to 100% of full capacity, so a 10 kN machine can measure a 100 N sample within its specified accuracy.

Speed range that matches the method

Settable from 0.001 to 1000 mm/min. When a standard specifies a crosshead speed, the AG01 can be set to it. The recorded curve reflects the method rather than the machine's speed limits.

Stroke and width for real samples

1100 mm maximum stroke (excluding grips) and 400 mm gantry width. Fabric, cable, and film samples fit without being cut down to fit the machine. Custom stroke lengths are available.

Software analysis beyond the peak value

Fracture point, break-off point, yield point, initial modulus, and elastic-plastic deformation are all analysed. The whole curve can be amplified at a fixed point, and test data queried at a fixed point. The result is a curve analysis, not just a peak load.

Safety layers that run in parallel

Upper and lower limit position protection, fixture protection, settable displacement and load limits, sensor overload protection, sample load software protection, and overcurrent and overvoltage protection. Real-time monitoring of main components runs continuously. On a 10 kN machine, these layers protect the operator, the sample, and the load cell.

Remote control without a fixed workstation

Tablet, wireless Wi-Fi, and Android phone control are supported alongside the touchscreen and computer control. The operator is not tied to a fixed workstation during a test.

---

Solving the Problems That Slow Mechanical Testing Down

Struggling to cover multiple test types on one machine? Tensile, compression, bending, shear, tear, and peel tests all run on the double-column frame. One machine covers the mechanical testing needs of a mixed-material lab.

Getting force readings that fall outside the specified accuracy at low loads? The 1%–100% of full capacity test range with ±0.2% F*S accuracy means a 10 kN machine measures low-load samples within specification, rather than at the edge of the load cell's usable range.

Needing speed control that matches the test method? Settable from 0.001 to 1000 mm/min. When the standard specifies a crosshead speed, the AG01 matches it.

Worried about operator safety at high loads? Upper and lower limit protection, fixture protection, settable displacement and load limits, sensor overload protection, and overcurrent and overvoltage protection all run in parallel. On a 10 kN machine, these layers are what allow the test to run safely.

Needing more than a peak load value? The software analyses fracture point, yield point, initial modulus, and elastic-plastic deformation. The whole curve can be amplified at a fixed point and queried. The result is a curve analysis.

Tied to a fixed workstation during testing? Tablet, Wi-Fi, and Android phone control are supported. The operator can monitor and adjust from a distance.

---

Warranty & Support

We provide a 1-year manufacturer’s warranty covering parts and labor. Technical support, installation assistance, and operational training are also available. Replacement parts and consumables are available throughout the product’s service life.
