Introduction to Precision Contamination Control

When your laboratory needs to protect sensitive samples from particulates and contamination, standard workstations often fall short. Unfiltered air, turbulent airflow, and gaps or joints where spores can collect can compromise sample integrity, lead to unreliable experimental results, and cost you valuable time and resources.

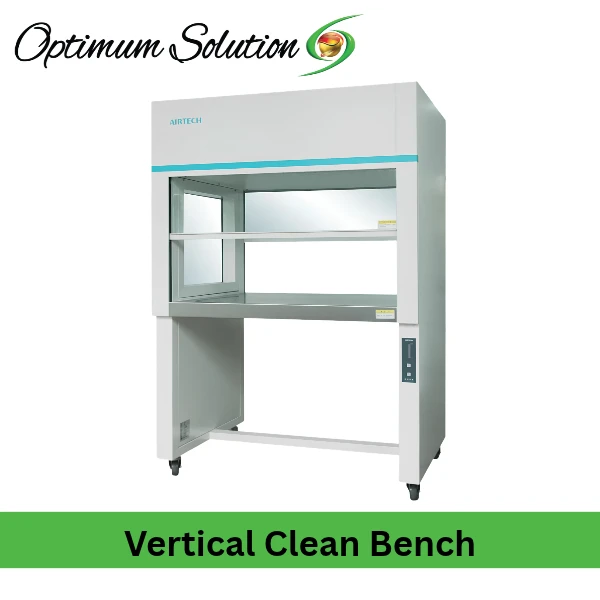

The Vertical Laminar Flow Cabinet is engineered to eliminate these variables. As a cornerstone of the Vertical Laminar Flow Cabinet series, this unit is built for semiconductor laboratories, biological research facilities, and tissue culture labs that require uncompromising contamination control. This Vertical Laminar Flow Cabinet provides a reliable, reproducible clean work environment for your most sensitive materials, with HEPA filtration and smooth vertical laminar airflow toward the work surface. We understand that in your line of work, contamination control is not just a feature—it is a necessity.

Technical Specifications

Here is a detailed breakdown of the technical capabilities for the Vertical Laminar Flow Cabinet. Our models are designed to meet rigorous laboratory standards.

• Model/Part Number: SW-CJ-1F-II

• Airflow Type: Vertical Airflow

• Operation Side/Operator Number: Double-side/Single-operator

• Cleanliness Class: ISO Class 5, FED 209E Class 100

• Filter Efficiency: ≥99.99% (@0.3μm)

• Velocity: ≥0.3 m/s (Adjustable)

• Voltage/Frequency: AC220V, 50Hz, 1Φ

• Net Weight: 130 kg

• Working Dimensions (W×D×H): 870×690×520 mm

• External Dimensions (W×D×H): 1010×750×1600 mm

• Model/Part Number: SW-CJ-1FD-II

• Airflow Type: Vertical Airflow

• Operation Side/Operator Number: Single-side/Single-operator

• Cleanliness Class: ISO Class 5, FED 209E Class 100

• Filter Efficiency: ≥99.99% (@0.3μm)

• Velocity: ≥0.3 m/s (Adjustable)

• Voltage/Frequency: AC220V, 50Hz, 1Φ

• Net Weight: 130 kg

• Working Dimensions (W×D×H): 870×690×520 mm

• External Dimensions (W×D×H): 1010×730×1600 mm

• Model/Part Number: SW-CJ-2F-II

• Airflow Type: Vertical Airflow

• Operation Side/Operator Number: Double-side/Single-operator

• Cleanliness Class: ISO Class 5, FED 209E Class 100

• Filter Efficiency: ≥99.99% (@0.3μm)

• Velocity: ≥0.3 m/s (Adjustable)

• Voltage/Frequency: AC220V, 50Hz, 1Φ

• Net Weight: 170 kg

• Working Dimensions (W×D×H): 1360×690×520 mm

• External Dimensions (W×D×H): 1500×750×1600 mm

• Model/Part Number: SW-CJ-2FD-II

• Airflow Type: Vertical Airflow

• Operation Side/Operator Number: Single-side/Single-operator

• Cleanliness Class: ISO Class 5, FED 209E Class 100

• Filter Efficiency: ≥99.99% (@0.3μm)

• Velocity: ≥0.3 m/s (Adjustable)

• Voltage/Frequency: AC220V, 50Hz, 1Φ

• Net Weight: 170 kg

• Working Dimensions (W×D×H): 1360×690×520 mm

• External Dimensions (W×D×H): 1500×730×1600 mm

• Main HEPA Filter Efficiency: ≥99.99% (@0.3μm)

• Pre-Filter: Included to prolong lifetime of main filter

• Window: Tempered glass with Japan lifting system

• Working Area Material: SUS304 stainless steel for easy cleaning

• Fan Control: Adjustable fan unit with one-button velocity selection

• Inter-Locking System: For illuminating light and lamp

• Mobility: Universal wheel and foot

Standard Accessories included:

• Clean bench base unit

• Main HEPA filter

• Pre-filter

• Tempered glass window with Japan lifting system

• SUS304 stainless steel working area

• Adjustable fan unit with one-button velocity selection

• LED illuminating light

• Inter-locking system for light and lamp

• Universal wheels and feet

• Electric socket

• Integrated supporter

• Operation manual

Items Excluded:

• UV light (optional)

• Gas valve (optional)

• Water valve (optional)

• Calibration certificate (available upon request)

• Extended warranty (available for purchase)

• HEPA filter replacement (available separately)

Pre-installation requirement:

• A stable, level floor with sufficient load-bearing capacity

• A dedicated power outlet matching the unit's specifications (AC220V, 50Hz)

• Adequate clearance around the unit for access and maintenance

• Cleanroom or controlled environment recommended for optimal performance

• Operator training on standard safety procedures for laminar flow cabinets is recommended

Key Benefits: Precision, Efficiency, and Safety for Your Lab

Our Vertical Laminar Flow Cabinet is more than just a piece of equipment; it is a solution designed to address the real-world challenges you face daily. We have focused on core features that deliver tangible benefits, enhancing your lab's productivity and the reliability of your contamination-sensitive work.

• ISO Class 5 Cleanliness: The main HEPA filter with ≥99.99% efficiency (@0.3μm) delivers ISO Class 5 (FED 209E Class 100) cleanliness, ensuring a particle-free work environment for sensitive samples. This directly solves the common pain point of contamination compromising experimental results, giving you confidence in your data. For more information on our range of precision lab equipment, visit our website at https://os4u.com.bd/.

• SUS304 Stainless Steel Work Area: The stainless steel construction with no gaps or joints where spores might collect enables easy cleaning and maintains a sterile work surface. This engineering excellence reflects the manufacturer's commitment to laboratory standards. You can see their full capabilities at https://www.antechscientific.com/.

• Tempered Glass Window with Japan Lifting System: The tempered glass window with smooth lifting mechanism provides clear visibility and easy access to the work area while maintaining a sealed environment.

• Pre-Filter Protection: The pre-filter prolongs the lifetime of the main HEPA filter, reducing maintenance costs and ensuring consistent performance over time.

• Adjustable Fan and Velocity: The adjustable fan unit and one-button velocity selection allow you to maintain optimal airflow (≥0.3 m/s) for different applications.

• Safety Inter-Locking System: The inter-locking system for illuminating light and lamp prevents accidental exposure, ensuring operator safety.

• Versatile Configurations: Available in single-sided and double-sided configurations, with working widths of 870mm and 1360mm, accommodating different laboratory workflows.

• Mobility and Stability: Universal wheels and feet allow easy positioning and stable operation, with the integrated supporter and electric socket providing convenience.

Solving the Problems That Slow Lab Work Down

We know the frustrations that come with maintaining a clean work environment. The Vertical Laminar Flow Cabinet is built to eliminate them.

• Struggling with contamination compromising sensitive samples? The HEPA filter with ≥99.99% efficiency delivers ISO Class 5 cleanliness, ensuring a particle-free work environment for your most sensitive materials.

• Concerned about difficult cleaning and spore collection? The SUS304 stainless steel construction with no gaps or joints enables easy cleaning and prevents spore accumulation.

• Tired of inconsistent airflow affecting your work? The adjustable fan unit and one-button velocity selection allow you to maintain optimal airflow for different applications.

• Need flexibility for different workflows? Single-sided and double-sided configurations, along with two working widths, accommodate a range of laboratory setups and operator preferences.

By choosing this Vertical Laminar Flow Cabinet, you are investing in a dependable partner for your lab's daily operations, designed to deliver contamination control and reliability where it matters most.

---

Warranty & Support

We provide a 1-year manufacturer’s warranty covering parts and labor. Technical support, installation assistance, and operational training are also available. Replacement parts and consumables are available throughout the product’s service life.

Call to Action

Request a Quotation or Technical Datasheet: Contact us for more information, customized configurations, and solutions tailored to your specific requirements.
