Introduction to Precision Transport Simulation Testing

When your laboratory needs to evaluate how packages, cartons, and batteries withstand the rigors of transportation, standard equipment often falls short. Inconsistent vibration output and limited frequency range can compromise test validity, lead to unreliable transport simulation data, and cost you valuable time and resources.

The High Frequency Transport Simulation Vibration Test Bench is engineered to eliminate these variables. As a cornerstone of the High Frequency Transport Simulation Vibration Test Bench series, this unit is built for packaging manufacturers, battery producers, and testing laboratories that require unwavering performance for package carton testing, battery vibration testing, and transport simulation. This High Frequency Transport Simulation Vibration Test Bench provides a reliable, reproducible environment for your most critical transport qualification tests. We understand that in your line of work, precision is not just a feature—it is a necessity.

Technical Specifications

Here is a detailed breakdown of the technical capabilities for the High Frequency Transport Simulation Vibration Test Bench. Our models are designed to meet rigorous IEC, UL, UN, and ISTA standards.

• Model/Part Number: ES-3

• Rated Sine Force: 3000 N

• Rated Random Force: 3000 N

• Frequency Range: 3 to 3500 Hz

• Rated Acceleration: 1000 m/s²

• Rated Speed: 1.6 m/s

• Rated Displacement (p-p): 25 mm

• Max. Loading: 100 kg

• Moving Coil Weight: 3.5 kg

• Moving Coil Dimension: Φ150 mm

• Model/Part Number: ES-3a

• Rated Sine Force: 3000 N

• Rated Random Force: 3000 N

• Frequency Range: 3 to 3500 Hz

• Rated Acceleration: 400 m/s²

• Rated Speed: 1.6 m/s

• Rated Displacement (p-p): 40 mm

• Max. Loading: 120 kg

• Moving Coil Weight: 9 kg

• Moving Coil Dimension: Φ230 mm

• Model/Part Number: ES-6

• Rated Sine Force: 6000 N

• Rated Random Force: 6000 N

• Frequency Range: 3 to 3500 Hz

• Rated Acceleration: 1000 m/s²

• Rated Speed: 1.6 m/s

• Rated Displacement (p-p): 25 mm

• Max. Loading: 180 kg

• Moving Coil Weight: 6.5 kg

• Moving Coil Dimension: Φ230 mm

• Model/Part Number: ES-6a

• Rated Sine Force: 6000 N

• Rated Random Force: 6000 N

• Frequency Range: 3 to 3500 Hz

• Rated Acceleration: 1000 m/s²

• Rated Speed: 1.6 m/s

• Rated Displacement (p-p): 51 mm

• Max. Loading: 250 kg

• Moving Coil Weight: 12 kg

• Moving Coil Dimension: Φ230 mm

• Model/Part Number: ES-10

• Rated Sine Force: 10000 N

• Rated Random Force: 10000 N

• Frequency Range: 3 to 3000 Hz

• Rated Acceleration: 1000 m/s²

• Rated Speed: 1.8 m/s

• Rated Displacement (p-p): 51 mm

• Max. Loading: 270 kg

• Moving Coil Weight: 14 kg

• Moving Coil Dimension: Φ240 mm

• Model/Part Number: ES-20

• Rated Sine Force: 20000 N

• Rated Random Force: 20000 N

• Frequency Range: 3 to 3000 Hz

• Rated Acceleration: 1000 m/s²

• Rated Speed: 1.8 m/s

• Rated Displacement (p-p): 51 mm

• Max. Loading: 300 kg

• Moving Coil Weight: 30 kg

• Moving Coil Dimension: Φ320 mm

• Model/Part Number: ES-30

• Rated Sine Force: 30000 N

• Rated Random Force: 30000 N

• Frequency Range: 3 to 2800 Hz

• Rated Acceleration: 1000 m/s²

• Rated Speed: 1.8 m/s

• Rated Displacement (p-p): 51 mm

• Max. Loading: 450 kg

• Moving Coil Weight: 40 kg

• Moving Coil Dimension: Φ450 mm

• Model/Part Number: ES-40

• Rated Sine Force: 40000 N

• Rated Random Force: 40000 N

• Frequency Range: 3 to 2800 Hz

• Rated Acceleration: 1000 m/s²

• Rated Speed: 1.8 m/s

• Rated Displacement (p-p): 51 mm

• Max. Loading: 500 kg

• Moving Coil Weight: 50 kg

• Moving Coil Dimension: Φ450 mm

• Model/Part Number: ES-50

• Rated Sine Force: 50000 N

• Rated Random Force: 50000 N

• Frequency Range: 3 to 2700 Hz

• Rated Acceleration: 1000 m/s²

• Rated Speed: 1.8 m/s

• Rated Displacement (p-p): 51 mm

• Max. Loading: 750 kg

• Moving Coil Weight: 50 kg

• Moving Coil Dimension: Φ450 mm

• Model/Part Number: ES-60

• Rated Sine Force: 60000 N

• Rated Random Force: 60000 N

• Frequency Range: 3 to 2700 Hz

• Rated Acceleration: 1000 m/s²

• Rated Speed: 1.8 m/s

• Rated Displacement (p-p): 51 mm

• Max. Loading: 750 kg

• Moving Coil Weight: 60 kg

• Moving Coil Dimension: Φ450 mm

• Model/Part Number: ES-100

• Rated Sine Force: 100000 N

• Rated Random Force: 100000 N

• Frequency Range: 3 to 2500 Hz

• Rated Acceleration: 1000 m/s²

• Rated Speed: 1.8 m/s

• Rated Displacement (p-p): 51 mm

• Max. Loading: 1000 kg

• Moving Coil Weight: 90 kg

• Moving Coil Dimension: Φ450 mm

• Test Capabilities: Three mutually perpendicular directions, prescribed frequency, acceleration, and displacement modes

• Compliance Standards: IEC 62133, UL 1642, UN 38.3, GB 31241, MIL-STD-810, DO-160, ISTA

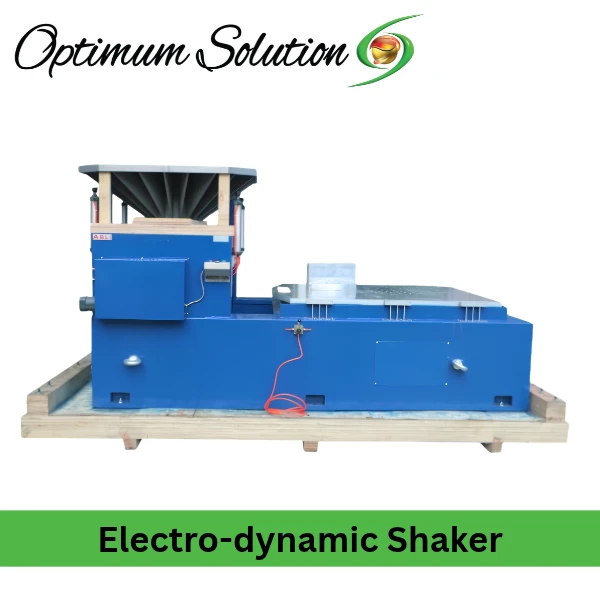

• System Composition: Vibration test bench, power amplifier, cooling fan, slip table, vertical expander

• Power Amplifier: Switching-type, over 90% efficiency, low-distortion output

• Cooling Fan: Low-noise blower designed for continuous operation

Standard Accessories included:

• Vibration test bench with air-cooled, lightweight armature

• Switching-type power amplifier

• Low-noise cooling fan

• Slip table for horizontal vibration testing

• Vertical expander with specified clamps

• Operation manual

Items Excluded:

• Custom fixture design (available as engineering service)

• Calibration certificate (available upon request)

• Extended warranty (available for purchase)

• On-site installation and commissioning (available at additional cost)

Pre-installation requirement:

• A stable, level surface with sufficient load-bearing capacity for the shaker and test specimen

• A dedicated power outlet matching the system's specifications

• Adequate ventilation and clearance around the power amplifier and cooling fan

• Trunnion isolation foundation for vibration isolation

• Operator training on standard safety procedures for vibration testing equipment is recommended

Key Benefits: Precision, Efficiency, and Safety for Your Lab

Our High Frequency Transport Simulation Vibration Test Bench is more than just a piece of equipment; it is a solution designed to address the real-world challenges you face daily. We have focused on core features that deliver tangible benefits, enhancing your lab's productivity and the reliability of your outcomes.

• Three-Axis Testing Capability: Completes X, Y, Z three-axis vibration tests under prescribed frequency, acceleration, and displacement modes. This directly solves the common pain point of limited test capability, giving you confidence in your transport simulation data. For more information on our range of precision lab equipment, visit our website at https://os4u.com.bd/.

• Multi-Standard Compliance: Meets IEC 62133, UL 1642, UN 38.3, GB 31241, MIL-STD-810, DO-160, and ISTA requirements, making it suitable for transport simulation and reliability testing across multiple industries. This engineering excellence is a hallmark of ASLi's 28 years of manufacturing experience. You can see their full capabilities at https://www.aslitesting.com/.

• Advanced Technology: Adopts double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings and linear guidance, and trunnion isolation for reliable performance.

• High Efficiency Power Amplifier: Switching-type power amplifier with over 90% efficiency and low-distortion output ensures reliable performance and energy savings, minimizing operating costs over years of daily use.

• Custom Fixture Design: Provide your package or battery drawing/3D model, and we will deliver a fixture that keeps the first natural frequency above your test range, with documented resonance search results.

• Comprehensive Safety Protection: Multi-layer protection includes over-temperature, over-current, and fault warning systems, ensuring a safe working environment.

Solving the Problems That Slow Lab Work Down

We know the frustrations that come with routine transport simulation testing. The High Frequency Transport Simulation Vibration Test Bench is built to eliminate them.

• Struggling with limited frequency range affecting test validity? The 3 to 3500 Hz frequency range covers a wide variety of test standards, ensuring reproducible outcomes across every run.

• Concerned about inconsistent vibration output affecting test validity? The advanced control system maintains precise vibration output, ensuring reproducible outcomes across every run.

• Tired of time-consuming setup and monitoring? The switching-type power amplifier and automated control system allow for precise parameter setting and unattended operation, streamlining your testing process.

• Need to comply with multiple international standards? This system supports IEC 62133, UL 1642, UN 38.3, GB 31241, MIL-STD-810, DO-160, and ISTA, eliminating the need for multiple dedicated instruments.

By choosing this High Frequency Transport Simulation Vibration Test Bench, you are investing in a dependable partner for your lab's daily operations, designed to deliver accuracy and reliability where it matters most.

---

Warranty & Support

We provide a 1-year manufacturer’s warranty covering parts and labor. Technical support, installation assistance, and operational training are also available. Replacement parts and consumables are available throughout the product’s service life.
