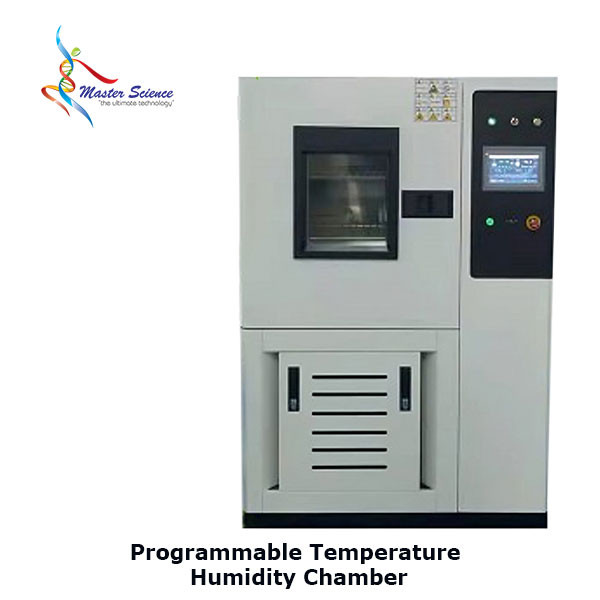

Inconsistent thermal environments can lead to devastating failures in product development and material science. When your research demands absolute stability, utilizing a high-performance Programmable Temperature and Humidity Chamber is the only way to guarantee that your samples are subjected to precise, repeatable conditions. This series provides the rigorous control necessary for aerospace, automotive, and electronics testing, ensuring every component meets international compliance standards.

Comprehensive Technical Specifications

The MSLY-PTH SWISS series is built with industry-leading components to ensure maximum thermal efficiency and humidity precision. Below are the detailed specifications for our range of environmental simulation systems.

• Model Series: MSLY-PTH SWISS (Models 50 through 1000)

• Temperature Control Range: -70°C to +150°C (Customizable options available)

• Humidity Operating Range: 20% RH to 98% RH

• Temperature Fluctuation: ≤±0.5°C

• Temperature Uniformity: ≤±2.0°C

• Humidity Deviation: ±2.5% RH (High range: +2.-3% RH)

• Heating Rate: 3.0°C to 5.0°C per minute

• Cooling Rate: 0.7°C to 1.5°C per minute

• Resolution Accuracy: 0.1°C

• Interior Material: 1.0mm thick 304SUS high-grade stainless steel

• Exterior Material: 1.2mm thick cold-rolled steel with electrostatic spraying

• Refrigeration Compressor: French imported Tecumseh fully enclosed unit

• Controller System: TEMI brand (Korea) programmable interface

• Insulation Type: Rigid polyurethane foam and high-density glass fiber

• Observation Window: Double-layer toughened glass with conductive anti-fog heating

Dimensions

• MSMSLY-PTH50SWISS: Interior 350x350x400mm, External 750x850x1510mm

• MSLY-PTH100SWISS: Interior 400x500x500mm, External 800x1000x1610mm

• MSLY-PTH150SWISS: Interior 500x500x600mm, External 900x1000x1710mm

• MSLY-PTH225SWISS: Interior 600x500x750mm, External 900x1000x1860mm

• MSLY-PTH408SWISS: Interior 800x600x850mm, External 1100x1300x1910mm

• MSLY-PTH500SWISS: Interior 700x800x900mm, External 1200x1300x2010mm

• MSLY-PTH800SWISS: Interior 800x1000x1000mm, External 1300x1500x2110mm

• MSLY-PTH1000SWISS: Interior 1000x1000x1000mm, External 1500x1500x2110mm

Addressing Critical Laboratory Challenges

Struggling with variable sample separation or drifting humidity levels during long-term stability tests? Many researchers face significant equipment downtime and lost data due to poor insulation or unreliable compressors. Our precision-engineered Programmable Temperature and Humidity Chamber solves these issues by incorporating a cascade refrigeration system and a sealed, high-grade stainless steel interior. This design prevents thermal leakage and atmospheric interference, allowing you to run complex, alternating humidity cycles without manual intervention. If you are tired of condensation obscuring your samples, the advanced Programmable Temperature and Humidity Chamber features include a conductive-heated observation window that stays crystal clear even during rapid temperature transitions.

Key Benefits and Laboratory Solutions

Choosing the right equipment is about more than just specifications; it is about trust in your results. The Programmable Temperature and Humidity Chamber offers significant improvements in lab efficiency by allowing for 24/7 automated testing.

Accuracy is greatly improved through the TEMI controller’s PID logic, which prevents temperature overshoot and ensures that your materials are never exposed to conditions outside of your defined parameters. This level of control is essential for preventing sample degradation and ensuring valid data for quality assurance audits. Furthermore, the durable Programmable Temperature and Humidity Chamber construction ensures a long service life, with the SUS304 stainless steel interior resisting the corrosive effects of high-humidity environments. Safety is also prioritized with built-in overheat protection and emergency stop functions, providing peace of mind for overnight testing.

Enhanced Performance for Specialized Industries

Whether you are testing the resilience of automotive sensors or the shelf-life of pharmaceutical products, this Programmable Temperature and Humidity Chamber provides the flexibility to customize your test hole sizes and shelf configurations. The electrostatic spraying on the exterior ensures the unit remains scratch-resistant and clean in professional lab environments.

Investing in a reliable Programmable Temperature and Humidity Chamber system reduces the risk of human error by digitalizing your entire testing protocol. The TEMI software allows for easy data logging and monitoring, bridging the gap between physical testing and digital record-keeping. Elevate your research standards today with a solution designed for those who refuse to compromise on precision.

Summary of Features

• High-load sample holders capable of supporting over 50kg per layer.

• Cascade refrigeration technology for rapid cooling and energy efficiency.

• Multi-standard compliance including GB/T2423, IEC 60068, and GJB150.

• Optional computer software integration for remote data management.

• Customizable dimensions to fit specific laboratory space requirements.

•
