Introduction to Precision Corrosion Testing

When your laboratory needs to predict how protective coatings and surface treatments will hold up in corrosive environments, standard equipment often falls short. Inconsistent spray patterns and temperature fluctuations can compromise test validity, lead to unreliable corrosion data, and cost you valuable time and resources.

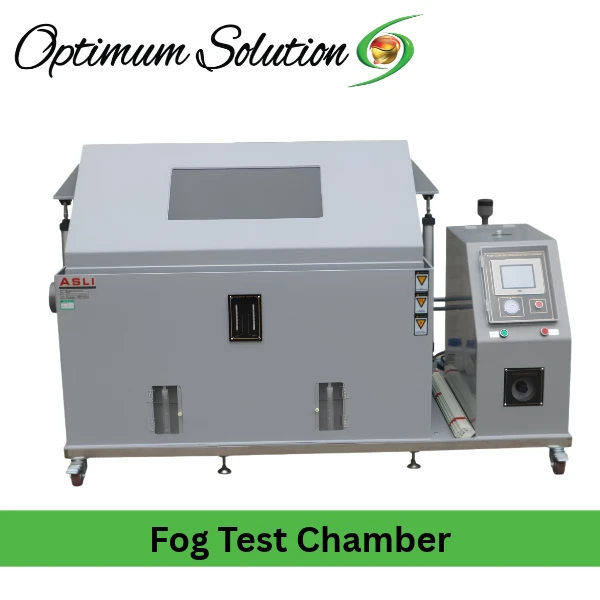

The Programmable Touch Screen Control Salt Spray Fog Test Chamber is engineered to eliminate these variables. As a cornerstone of the Programmable Touch Screen Control Salt Spray Fog Test Chamber series, this unit is built for manufacturers, quality control laboratories, and research institutes that require unwavering performance for accelerated corrosion testing, coating evaluation, and material suitability assessment. This Programmable Touch Screen Control Salt Spray Fog Test Chamber provides a reliable, reproducible environment for your most critical salt spray tests. We understand that in your line of work, precision is not just a feature—it is a necessity.

Technical Specifications

Here is a detailed breakdown of the technical capabilities for the Programmable Touch Screen Control Salt Spray Fog Test Chamber. Our models are designed to meet rigorous laboratory standards.

• Model/Part Number: SH-60

• Internal Dimension (W×H×D): 600×400×450 mm

• External Dimension (W×H×D): 1100×600×1200 mm

• Lab Capacity: 110 L

• Saline Capacity: 15 L

• Approx. Weight: 65 kg

• Model/Part Number: SH-90

• Internal Dimension (W×H×D): 900×600×500 mm

• External Dimension (W×H×D): 1400×950×1200 mm

• Lab Capacity: 270 L

• Saline Capacity: 25 L

• Approx. Weight: 80 kg

• Model/Part Number: SH-120

• Internal Dimension (W×H×D): 1200×800×500 mm

• External Dimension (W×H×D): 1900×1300×1400 mm

• Lab Capacity: 500 L

• Saline Capacity: 40 L

• Approx. Weight: 120 kg

• Model/Part Number: SH-160

• Internal Dimension (W×H×D): 1600×800×500 mm

• External Dimension (W×H×D): 2300×1300×1400 mm

• Lab Capacity: 800 L

• Saline Capacity: 40 L

• Approx. Weight: 160 kg

• Model/Part Number: SH-200

• Internal Dimension (W×H×D): 2000×1000×500 mm

• External Dimension (W×H×D): 2700×1500×1500 mm

• Lab Capacity: 1500 L

• Saline Capacity: 40 L

• Approx. Weight: 200 kg

• Lab Temperature: Saline test (NSS ACSS) 35±1°C; Corrosion Test (CASS) 50±1°C

• Pressure Bucket Temperature: Saline test method (NSS ACSS) 47±1°C / Corrosion Test (CASS) 63±1°C

• Saline Concentration: 5% concentration of NaCl, or for every liter of 5% NaCl, add 0.26g CuCl2H2O

• Compressed Air Pressure: 1.0 to 6.0 kgf

• Spray Volume: 1.0 to 2.0 ml/80cm²/h (working at least 16 hours, and take the average value)

• Spray Form: Continuous Spraying or Programmable Spraying

• Temperature Controller: Digitally temperature controller, PID controlled, precision of ±0.1°C

• Internal Material: SUS 304# stainless steel

• Saturated Bucket Material: SUS 304# stainless steel

• Spray Nozzle: Precise glass spray nozzle, good uniformity, mist drops naturally, no NaCl crystallized salt

• Spray Tower: Tapered spray tower, even mist dropping

• Heating Method: Laboratory direct steam-heated, even heating speed, reducing standby time

• Water System: Automatic or manual water adding system, waters itself while lacking water

• Safety Features: Double over-heat protection device and alarm when water short time to ensure user safety

• Power Supply: AC 220V 1-phase 3 lines 15A

Standard Accessories included:

• Salt spray test chamber base unit

• Precise glass spray nozzle

• Tapered spray tower

• SUS 304# saturated bucket

• Automatic water filling system

• Digital temperature controller

• Power cable

• Operation manual

Items Excluded:

• Calibration certificate (available upon request)

• Additional saline tanks (available separately)

• Extended warranty (available for purchase)

• On-site installation and commissioning (available at additional cost)

Pre-installation requirement:

• A stable, level surface with sufficient load-bearing capacity

• A dedicated power outlet matching the unit's specifications (AC 220V)

• Adequate water supply and drainage for salt spray testing

• Compressed air supply within the 1.0 to 6.0 kgf range

• Adequate ventilation and clearance around the unit

• Operator training on standard safety procedures for salt spray testing equipment is recommended

Key Benefits: Precision, Efficiency, and Safety for Your Lab

Our Programmable Touch Screen Control Salt Spray Fog Test Chamber is more than just a piece of equipment; it is a solution designed to address the real-world challenges you face daily. We have focused on core features that deliver tangible benefits, enhancing your lab's productivity and the reliability of your outcomes.

• Accelerated Corrosion Testing: Produces a corrosive attack on coated samples to predict their suitability as a protective finish. This directly solves the common pain point of long-term outdoor exposure tests, giving you faster results without compromise. For more information on our range of precision lab equipment, visit our website at https://os4u.com.bd/.

• Precise Temperature Control: The digital PID controller maintains ±0.1°C precision, ensuring reproducible outcomes across every run. This engineering excellence is a hallmark of ASLi's 28 years of manufacturing experience. You can see their full capabilities at https://www.aslitesting.com/.

• Uniform Spray Distribution: The precise glass spray nozzle and tapered spray tower ensure good uniformity with natural mist drops and no NaCl crystallized salt, eliminating the common pain point of inconsistent spray patterns.

• Durable Stainless Steel Construction: The SUS 304# stainless steel interior and saturated bucket resist corrosion, simplify cleaning, and extend service life, minimizing equipment downtime and protecting your investment over years of daily use.

• Automatic Water System: The automatic or manual water adding system waters itself while lacking water, reducing operator intervention and streamlining your testing process.

• Comprehensive Safety Protection: Double over-heat protection device and water shortage alarm ensure user safety, protecting both operators and samples.

Solving the Problems That Slow Lab Work Down

We know the frustrations that come with routine salt spray testing. The Programmable Touch Screen Control Salt Spray Fog Test Chamber is built to eliminate them.

• Struggling with inconsistent spray patterns affecting test validity? The precise glass spray nozzle and tapered spray tower maintain uniform mist distribution, ensuring reproducible outcomes across every run.

• Concerned about temperature fluctuations affecting test validity? The digital PID controller maintains ±0.1°C precision, ensuring reproducible outcomes across every run.

• Tired of time-consuming setup and monitoring? The programmable spray form and automatic water system allow for precise parameter setting and unattended operation, streamlining your testing process.

• Need to comply with multiple test standards? This chamber supports NSS, ACSS, and CASS test methods, eliminating the need for multiple dedicated instruments.

By choosing this Programmable Touch Screen Control Salt Spray Fog Test Chamber, you are investing in a dependable partner for your lab's daily operations, designed to deliver accuracy and reliability where it matters most.

---

Warranty & Support

We provide a 1-year manufacturer’s warranty covering parts and labor. Technical support, installation assistance, and operational training are also available. Replacement parts and consumables are available throughout the product’s service life.

Call to Action

Request a Quotation or Technical Datasheet: Contact us for more information, customized configurations, and solutions tailored to your specific requirements.
