Struggling with uneven organic film application, dangerous dust splashing, or excessive energy consumption during pharmaceutical batch processing? Manufacturing facilities and biological research laboratories frequently face the challenge of achieving uniform surface coatings without compromising strict GMP compliance. Implementing an advanced Tablet Film Coating Machine system directly resolves these workflow hurdles by combining precision Japanese spray technology with a highly secure, fully enclosed processing environment. This guarantees flawless pill aesthetics and uncompromising product stability for every single production run.

Technical Specifications

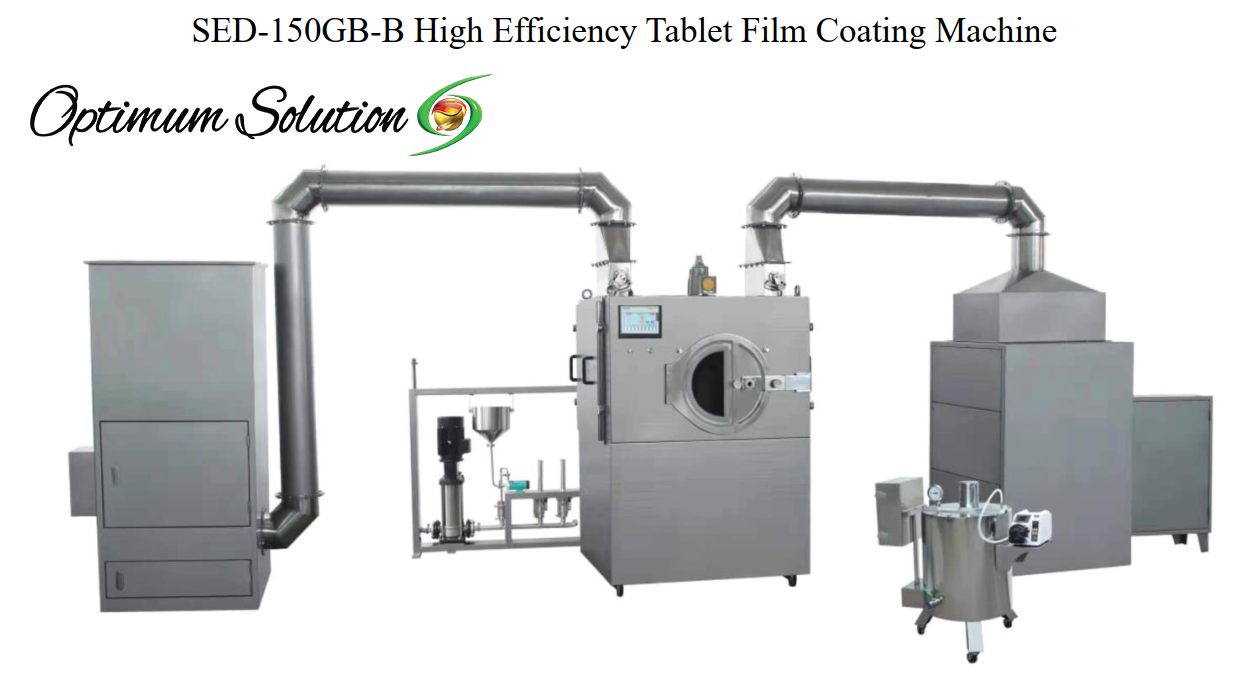

• Model Number: SED-150GB-B

• Product Part Number: 150GB-B-SED

• Batch Capacity: 150 kilograms per batch

• Drum Rotating Speed: 2 to 20 RPM

• Drum Diameter: 1200 millimeters

• Perforation Diameter: 3 millimeters

• Feeding Port Diameter: 480 millimeters

• Working Volume: 85 Liters

• Main Motor Power: 2.2 kW

• Total Electric Heating Power: 220V at 28 kW

• Pneumatic Motor Speed: 0 to 1000 RPM

• Hot Air Supply Volume: 3517 cubic meters per hour with three-stage filter

• Dust Removal Exhaust Air Volume: 7419 cubic meters per hour

• Hot Air Temperature Range: Adjustable from 40 to 80 degrees Celsius

• Hot Air Filtration Accuracy: 0.5 micrometers achieving Class 100000 cleanliness

• Host Machine Weight: 900 kilograms

• Overall Physical Dimensions: 1700 by 1300 by 2100 millimeters

Key Benefits and Solving Lab Challenges

Pharmaceutical facilities often lose critical time and expensive raw materials dealing with nozzle blockages and inconsistent spray patterns that ruin entire batches. This equipment completely eliminates these operational pain points. By utilizing a high efficiency Tablet Film Coating Machine platform, operators can leverage the imported Japanese Anestiwata spray gun. This guarantees excellent, uniform atomization with absolutely no nozzle blockages, allowing technicians to perfectly adjust the spray amount and angle for flawless water-phase and organic thin film applications.

Cross-contamination and hazardous dust exposure are major vulnerabilities for any facility aiming for strict regulatory compliance. This instrument actively prevents these workplace dangers through its intelligent enclosed design. The comprehensive capabilities of this Tablet Film Coating Machine allow users to securely contain all dust and splashing liquids within the chamber, heavily protecting both the final product purity and the respiratory health of your laboratory personnel.

Core Operational Features

Every unit is meticulously engineered to maximize production throughput while heavily prioritizing operational safety during high-capacity batch cycles.

• Microcomputer Programmable Control: Features an advanced Siemens PLC and touch screen interface that allows operators to easily adjust rotating speed, air inlet velocity, and spraying force in real-time.

• Explosion-Proof Drive System: Operates with highly secure explosion-proof reduction motors and variable frequency stepless speed regulation, functioning as a fully enclosed Tablet Film Coating Machine operation for safely handling volatile organic solvents.

• Advanced Air Purification: The independent hot air cabinet utilizes a three-stage filtration system to meet stringent 100,000-level cleaning requirements, ensuring only purified air touches your delicate dosage forms.

• Superior Peristaltic Pump: Integrates a precision liquid delivery pump with a 100 to 700 r/min speed adjustment range, ensuring continuous and perfectly measured fluid transfer to the atomizer.

Upgrade Your Pharmaceutical Manufacturing Workflow

Modern pharmaceutical processing demands production instruments that deliver uncompromising uniformity, rapid batch turnover, and absolute safety compliance. Integrating a top-tier Tablet Film Coating Machine into your facility ensures your final dosage forms are perfectly protected, aesthetically pleasing, and highly stable. Invest in state-of-the-art surface application technology today to streamline your complex manufacturing protocols, eliminate costly batch rejections, and achieve absolute confidence in every single coated pill.
