Introduction to Precision Pharmaceutical Stability Testing

When your laboratory needs to evaluate how pharmaceutical products hold up over time under controlled temperature and humidity conditions, standard equipment often falls short. Inconsistent climate control can compromise test validity, lead to unreliable stability data, and cost you valuable time and resources—not to mention regulatory headaches.

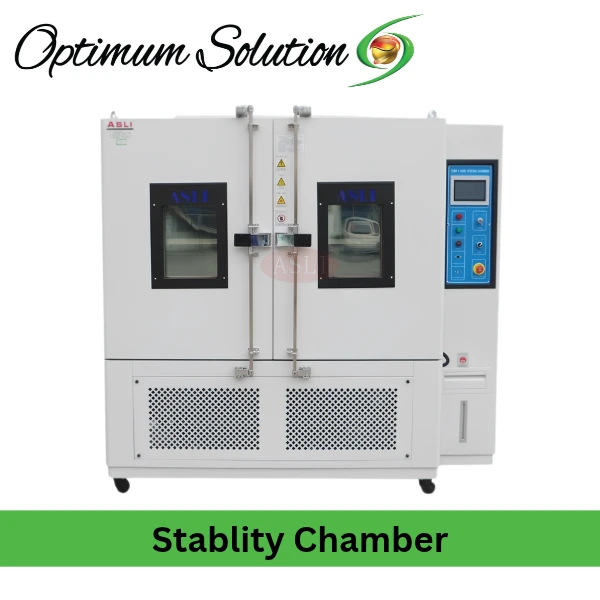

The Stability Test Chamber for Pharmaceutical Applications is engineered to eliminate these variables. As a cornerstone of the Stability Test Chamber for Pharmaceutical Applications series, this unit is built for pharmaceutical laboratories, research institutes, and quality control departments that require unwavering performance for stability testing, shelf-life evaluation, and ICH guideline compliance. This Stability Test Chamber for Pharmaceutical Applications provides a reliable, reproducible environment for your most critical stability studies. We understand that in your line of work, precision is not just a feature—it is a necessity.

Technical Specifications

Here is a detailed breakdown of the technical capabilities for the Stability Test Chamber for Pharmaceutical Applications. Our models are designed to meet rigorous pharmaceutical standards.

• Model/Part Number: TH-80

• Internal Dimension (W×H×D): 400×500×400 mm

• External Dimension (W×H×D): 950×1650×950 mm

• Approx. Weight: 150 kg

• Model/Part Number: TH-150

• Internal Dimension (W×H×D): 500×600×500 mm

• External Dimension (W×H×D): 1050×1750×1050 mm

• Approx. Weight: 180 kg

• Model/Part Number: TH-225

• Internal Dimension (W×H×D): 600×750×500 mm

• External Dimension (W×H×D): 1200×1900×1150 mm

• Approx. Weight: 250 kg

• Model/Part Number: TH-408

• Internal Dimension (W×H×D): 600×850×800 mm

• External Dimension (W×H×D): 1200×1950×1350 mm

• Approx. Weight: 320 kg

• Model/Part Number: TH-800

• Internal Dimension (W×H×D): 1000×1000×800 mm

• External Dimension (W×H×D): 1600×2000×1450 mm

• Approx. Weight: 400 kg

• Model/Part Number: TH-1000

• Internal Dimension (W×H×D): 1000×1000×1000 mm

• External Dimension (W×H×D): 1600×2100×1450 mm

• Approx. Weight: 450 kg

• Temperature Range: Low Temperature options: 25°C, 0°C, -20°C, -40°C, -60°C, -70°C

• High Temperature Options: 150°C, 180°C, 200°C

• Humidity Range: Optional: 20% to 98% R.H., 10% to 98% R.H., or 5% to 98% R.H.

• Analytic Accuracy: 0.1°C; 0.1% R.H.

• Distribution Uniformity: ±2.0°C; ±3.0% R.H.

• Control Accuracy: ±0.5°C; ±2.5% R.H.

• Temperature Rising Speed Rate: Approx. 0.1 to 3.0°C/min

• Temperature Falling Speed Rate: Approx. 0.1 to 1.5°C/min

• Interior Material: SUS 304# stainless steel

• Exterior Material: Stainless steel or cold-rolled steel with paint coating

• Insulation Material: High-temperature resistant, high-density polyurethane foam

• Cooling System: Wind cooling or water cooling / single segment compressor (-40°C), double segment compressor (-70°C)

• Compressor: French Tecumseh Brand, Germany Bizer Brand

• Power Supply: AC 220V 1ph 3 lines, 50/60Hz or AC 380V 3ph 5 lines, 50/60Hz

• Display: 7-inch touch screen

• Connectivity: Standard USB port, remote data access, multilingual display

• Safety Features: Fuse-free switch, compressor overload protection, high/low voltage coolant protection, over-humidity and over-temperature protection, fault warning system, water shortage warning

Standard Accessories included:

• Test chamber base unit

• 7-inch touch screen controller

• Stainless steel interior chamber

• Shelves

• USB data logging port

• Power cable

• Operation manual

Items Excluded:

• Inner door with operation hole (optional)

• Recorder (optional)

• Water purifier (optional)

• Dehumidifier (optional)

• Calibration certificate (available upon request)

• Extended warranty (available for purchase)

Pre-installation requirement:

• A stable, level surface with sufficient load-bearing capacity

• A dedicated power outlet matching the unit's specifications (AC 220V or 380V)

• Adequate ventilation and clearance around the unit for heat dissipation

• Water supply for humidity testing (if applicable)

• Operator training on standard safety procedures for stability chambers is recommended

Key Benefits: Precision, Efficiency, and Compliance for Your Lab

Our Stability Test Chamber for Pharmaceutical Applications is more than just a piece of equipment; it is a solution designed to address the real-world challenges you face daily. We have focused on core features that deliver tangible benefits, enhancing your lab's productivity and the reliability of your outcomes.

• ICH Guideline Compliance Support: Developed in collaboration with pharmaceutical industry committees and licensing authorities like the FDA, the ICH guidelines define standardized storage and batch evaluation. This chamber is designed to support these requirements, directly solving the common pain point of regulatory compliance concerns. For more information on our range of precision lab equipment, visit our website at https://os4u.com.bd/.

• Stable and Repeatable Test Conditions: The PID control system and 7-inch touch screen maintain ±0.5°C and ±2.5% R.H. control accuracy, reducing invalid tests and retests. This engineering excellence is a hallmark of ASLi's 28 years of manufacturing experience. You can see their full capabilities at https://www.aslitesting.com/.

• Compact and Cost-Effective Designs: We offer reliable small chambers for pharmaceutical testing with precise humidity and temperature control, making them ideal for labs with limited space or budget constraints.

• Energy-Efficient Refrigeration: The electronic expansion valve system and high-density insulation support lower power consumption and long-term operating cost, minimizing equipment downtime and protecting your investment over years of daily use.

• Corrosion-Resistant Construction: The SUS 304# stainless steel interior resists corrosion, simplifies cleaning, and extends service life.

• Comprehensive Safety Protection: Over-temperature, over-humidity, compressor overload, and water-shortage protection help protect operators and samples, ensuring a safe working environment.

Solving the Problems That Slow Lab Work Down

We know the frustrations that come with routine stability testing. The Stability Test Chamber for Pharmaceutical Applications is built to eliminate them.

• Struggling with regulatory compliance for stability studies? This chamber is designed to support ICH guideline requirements for standardized storage and batch evaluation, helping you meet FDA and other regulatory expectations.

• Concerned about inconsistent temperature and humidity affecting test validity? The PID controller and high-density insulation maintain stable conditions with ±0.5°C and ±2.5% R.H. control accuracy, ensuring reproducible outcomes across every run.

• Tired of time-consuming setup and monitoring? The 7-inch touch screen and programmable controller allow for precise parameter setting and unattended operation, streamlining your testing process.

• Need to comply with multiple international standards? This chamber supports IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78, IEC 60068-2-30, ISO 139, ASTM D1776, MIL-STD-810, and GB/T 2423, eliminating the need for multiple dedicated instruments.

By choosing this Stability Test Chamber for Pharmaceutical Applications, you are investing in a dependable partner for your lab's daily operations, designed to deliver accuracy and compliance where it matters most.

---

Warranty & Support

We provide a 1-year manufacturer’s warranty covering parts and labor. Technical support, installation assistance, and operational training are also available. Replacement parts and consumables are available throughout the product’s service life.

Call to Action

Request a Quotation or Technical Datasheet: Contact us for more information, customized configurations, and solutions tailored to your specific requirements.
