Are you looking to add a distinctive tactile texture or sophisticated visual appeal to your packaging, invitations, or book covers? Do you need a reliable way to enhance product value while also incorporating effective anti-counterfeiting measures for your trademarks? The YW-920C Paper Embossing Machine is a precision-engineered solution designed to emboss intricate patterns onto a variety of materials, including paper, aluminum foil, plastic composites, leather, and thin metal plates. With advanced features like laser-engraved rolls, precise pressure control, and anti-wrinkle mechanisms, this industrial embossing machine delivers a refined, professional finish that elevates product presentation and protects brand identity in the competitive printing and packaging industry.

Why Choose the YW-920C Embossing Machine? Solving Quality, Control & Security Challenges

Achieve superior, consistent results with intelligent features that directly address common production pain points in print finishing.

• Eliminate Wrinkles and Jams for a Flawless Finish: Wrinkled material ruins runs and wastes stock. The YW-920C is equipped with specialized anti-wrinkle and anti-crimping roller structures. This ensures that even delicate papers and thin foils feed smoothly through the embossing nip, producing a consistent, high-quality texture without defects.

• Achieve Perfect Registration and Pattern Clarity: Misaligned embossing looks unprofessional. The machine features a precision guide plate for accurate alignment, while the high-quality laser-engraved embossing roll ensures every detail of your pattern is transferred with sharp definition. An integrated air-blowing knife and wool roll prevent the finished material from sticking to the embossing roll, protecting your work.

• Maintain Optimal Pressure and Speed for Every Job: Different materials and patterns require different settings. The YW-920C allows full operator control with adjustable pressure (2–10 Mpa) , monitored via double pressure gauges and regulating valves. The embossing speed is infinitely variable from 5 to 80 meters per minute, allowing you to optimize throughput for both delicate, detailed work and high-volume production runs.

• Protect Your Equipment and Ensure Operator Safety: Mechanical overloads can cause costly damage. The machine is protected by an electromagnetic clutch protection device that engages in case of a jam or malfunction, safeguarding critical components like the embossing rollers and drive train. This ensures long-term reliability and reduces downtime.

Key Features for High-Quality Print Finishing

Engineered for precision, durability, and versatility:

• High-Quality Embossing Roll: Equipped with a laser-engraved embossing roll for sharp, consistent pattern reproduction. The machine includes 6 embossing rollers as standard.

• Comprehensive Material Handling: Includes a paper feeding and unfolding roll, wool roll, and air-blowing knife for smooth, non-stop operation.

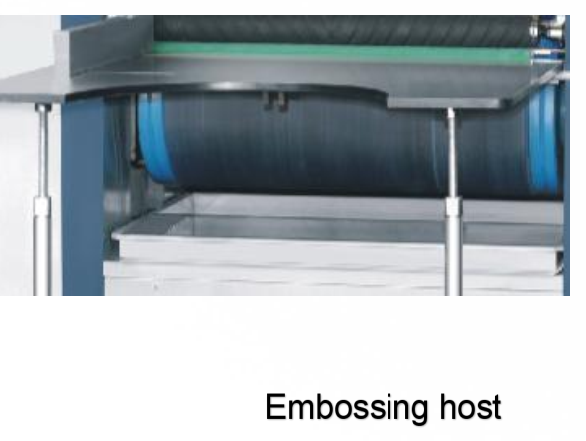

• Robust Heating and Pressure System: Features an electric heating tube and a hydraulic system to provide the high lamination pressure required for deep, clear embossing on a variety of materials.

• User-Friendly Controls: Double pressure gauges and regulating valves allow for fine-tuning of pressure settings.

• Versatile Material Compatibility: Suitable for paper, aluminum, plastic composites, leather, and thin metal plates, making it ideal for packaging, book covers, name cards, and security printing.

Technical Specifications at a Glance

Product Identity & Core Function

• Product Name: YW-C Series Paper Embossing Machine

• Model: YW-920C

• Primary Application: Embossing patterns onto paper, foil, leather, and composites for enhanced aesthetics and anti-counterfeiting.

• Target Industries: High-end printing, packaging manufacturing, stationery production, brand protection.

Performance & Capacity

• Maximum Laminating Width: 889 mm

• Suitable Paper Thickness: 80 to 500 gsm (grams per square meter)

• Embossing Speed Range: 5 to 80 m/min (infinitely adjustable)

• Working Pressure Range: 2 to 10 Mpa (adjustable via double gauges)

• Maximum Embossing Speed (stated in features): 100 m/min

Electrical & Power

• Power Supply: 380V AC, 3 Phase, 50/60 Hz

• Power Required: 15 kW

• Installed Power: 40 kVA

• Energy Consumption: 8 kW/h

Dimensions & Weight

• Machine Dimensions (L x W x H): 1900 x 960 x 1380 mm

• Machine Net Weight: 1800 kg

Standard Inclusions & Accessories

• Laser-engraved embossing roll system (includes 6 embossing rollers)

• Wool roll and air-blowing knife (anti-stick)

• Paper feeding and unfolding roll

• Electromagnetic clutch protection device

• Double pressure gauges and regulating valves

• Comprehensive tool kit (see detailed packing list)

• Operating manual and frequency converter manual

Detailed Packing List (Included)

Warranty & Support

• Guarantee: One-year guarantee.

• Coverage: Damaged spare parts due to natural causes (excluding human-induced damage) replaced free of charge within the guarantee period.

Ready to Elevate Your Products with Professional Embossing?

Add texture, value, and security to your print and packaging projects. The YW-920C delivers the precision and control you need.
