Introduction to Precision Military Standard Vibration Testing

When your laboratory needs to evaluate how equipment performs under the vibration conditions specified in MIL-STD-810G, standard equipment often falls short. Inconsistent force output and limited frequency range can compromise test validity, lead to unreliable vibration data, and cost you valuable time and resources.

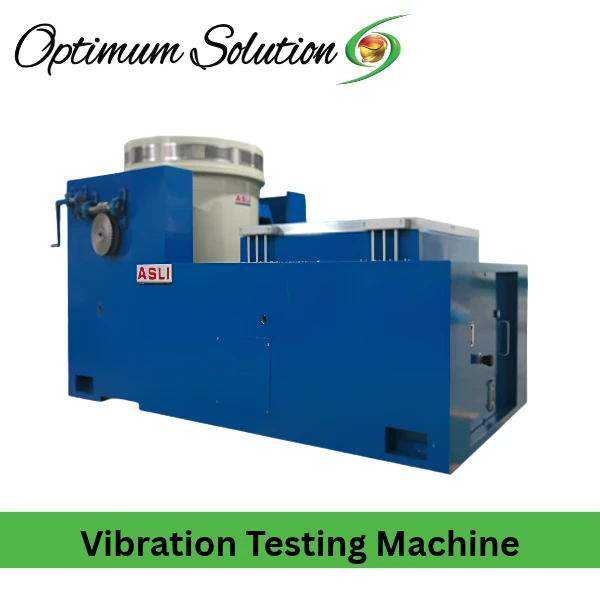

The MIL STD 810G Vibration Testing Machine is engineered to eliminate these variables. As a cornerstone of the MIL STD 810G Vibration Testing Machine series, this unit is built for defense contractors, aerospace manufacturers, and testing laboratories that require unwavering performance for MIL-STD-810G Method 514 vibration testing, sine testing, random testing, and shock response spectrum testing. This MIL STD 810G Vibration Testing Machine provides a reliable, reproducible environment for your most critical military standard qualification tests. We understand that in your line of work, precision is not just a feature—it is a necessity.

Technical Specifications

Here is a detailed breakdown of the technical capabilities for the MIL STD 810G Vibration Testing Machine. Our models are designed to meet rigorous IEC, ISO, ASTM, and MIL-STD-810G standards.

• Model/Part Number: ES-3

• Rated Sine Force: 3000 N

• Rated Random Force: 3000 N

• Frequency Range: 3 to 3500 Hz

• Rated Acceleration: 1000 m/s²

• Rated Speed: 1.6 m/s

• Rated Displacement (p-p): 25 mm

• Max. Loading: 100 kg

• Model/Part Number: ES-3a

• Rated Sine Force: 3000 N

• Rated Random Force: 3000 N

• Frequency Range: 3 to 3500 Hz

• Rated Acceleration: 400 m/s²

• Rated Speed: 1.6 m/s

• Rated Displacement (p-p): 40 mm

• Max. Loading: 120 kg

• Model/Part Number: ES-6

• Rated Sine Force: 6000 N

• Rated Random Force: 6000 N

• Frequency Range: 3 to 3500 Hz

• Rated Acceleration: 1000 m/s²

• Rated Speed: 1.6 m/s

• Rated Displacement (p-p): 25 mm

• Max. Loading: 180 kg

• Model/Part Number: ES-6a

• Rated Sine Force: 6000 N

• Rated Random Force: 6000 N

• Frequency Range: 3 to 3500 Hz

• Rated Acceleration: 1000 m/s²

• Rated Speed: 1.6 m/s

• Rated Displacement (p-p): 51 mm

• Max. Loading: 250 kg

• Model/Part Number: ES-10

• Rated Sine Force: 10000 N

• Rated Random Force: 10000 N

• Frequency Range: 3 to 3000 Hz

• Rated Acceleration: 1000 m/s²

• Rated Speed: 1.8 m/s

• Rated Displacement (p-p): 51 mm

• Max. Loading: 270 kg

• Model/Part Number: ES-20

• Rated Sine Force: 20000 N

• Rated Random Force: 20000 N

• Frequency Range: 3 to 3000 Hz

• Rated Acceleration: 1000 m/s²

• Rated Speed: 1.8 m/s

• Rated Displacement (p-p): 51 mm

• Max. Loading: 300 kg

• Model/Part Number: ES-30

• Rated Sine Force: 30000 N

• Rated Random Force: 30000 N

• Frequency Range: 3 to 2800 Hz

• Rated Acceleration: 1000 m/s²

• Rated Speed: 1.8 m/s

• Rated Displacement (p-p): 51 mm

• Max. Loading: 450 kg

• Model/Part Number: ES-40

• Rated Sine Force: 40000 N

• Rated Random Force: 40000 N

• Frequency Range: 3 to 2800 Hz

• Rated Acceleration: 1000 m/s²

• Rated Speed: 1.8 m/s

• Rated Displacement (p-p): 51 mm

• Max. Loading: 500 kg

• Model/Part Number: ES-50

• Rated Sine Force: 50000 N

• Rated Random Force: 50000 N

• Frequency Range: 3 to 2700 Hz

• Rated Acceleration: 1000 m/s²

• Rated Speed: 1.8 m/s

• Rated Displacement (p-p): 51 mm

• Max. Loading: 750 kg

• Model/Part Number: ES-60

• Rated Sine Force: 60000 N

• Rated Random Force: 60000 N

• Frequency Range: 3 to 2700 Hz

• Rated Acceleration: 1000 m/s²

• Rated Speed: 1.8 m/s

• Rated Displacement (p-p): 51 mm

• Max. Loading: 750 kg

• Model/Part Number: ES-100

• Rated Sine Force: 100000 N

• Rated Random Force: 100000 N

• Frequency Range: 3 to 2500 Hz

• Rated Acceleration: 1000 m/s²

• Rated Speed: 1.8 m/s

• Rated Displacement (p-p): 51 mm

• Max. Loading: 1000 kg

• Test Capabilities: X, Y, Z three-axis sinusoidal vibration, broadband random vibration, fixed frequency, sweep, and classical pulse shock response spectrum testing

• Technology: Double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings with linear guidance, trunnion isolation

• System Composition: Electrodynamic shaker, switching-type power amplifier, DSP vibration controller, head expander and fixtures, cooling system

• Compliance: IEC, ISO, ASTM, and MIL-STD-810G Method 514

• Displacement: 51 mm peak-to-peak on most models

• Frequency Range: Up to 3500 Hz on ES-3 through ES-6a models

Standard Accessories included:

• Electrodynamic shaker with air-cooled armature

• Switching-type power amplifier

• DSP vibration controller

• Cooling fan

• Operation manual

Items Excluded:

• Custom fixture design (available as engineering service)

• Horizontal expander LT series (optional)

• Vertical expander VT series (optional)

• Calibration certificate (available upon request)

• Extended warranty (available for purchase)

Pre-installation requirement:

• A stable, level surface with sufficient load-bearing capacity for the shaker and test specimen

• A dedicated power outlet matching the system's specifications

• Adequate ventilation and clearance around the power amplifier and cooling fan

• Trunnion isolation foundation for vibration isolation

• Operator training on standard safety procedures for vibration testing equipment is recommended

Key Benefits: Precision, Efficiency, and Safety for Your Lab

Our MIL STD 810G Vibration Testing Machine is more than just a piece of equipment; it is a solution designed to address the real-world challenges you face daily. We have focused on core features that deliver tangible benefits, enhancing your lab's productivity and the reliability of your outcomes.

• MIL-STD-810G Method 514 Compliance: Meets broadband random vibration requirements under MIL-STD-810G Method 514, eliminating the need for a second system. This directly solves the common pain point of non-compliant test results, giving you confidence in your defense qualification data. For more information on our range of precision lab equipment, visit our website at https://os4u.com.bd/.

• 51 mm Peak-to-Peak Displacement: Handles large-amplitude low-frequency shock profiles without re-running the sweep or resizing the fixture. This engineering excellence is a hallmark of ASLi's 28 years of manufacturing experience. You can see their full capabilities at https://www.aslitesting.com/.

• Wide Frequency Range up to 3500 Hz: Covers a broad spectrum of test requirements, from low-frequency durability holds to high-frequency resonance searches.

• Double-Magnetic Circuit Structure: Low flux leakage and stable coil temperature mean continuous multi-shift durability testing with zero downtime, protecting your investment over years of daily use.

• Quick-Mount VT / LT Expanders: Run vertical and horizontal tests on a single bench, saving lab floor space and a second system's capital expense.

• Five Excitation Modes in One Bench: Fixed frequency, sweep, sine, random, and shock testing, making this a versatile and cost-effective investment for your facility.

Solving the Problems That Slow Lab Work Down

We know the frustrations that come with routine vibration testing. The MIL STD 810G Vibration Testing Machine is built to eliminate them.

• Struggling with MIL-STD-810G compliance? The system is designed to meet Method 514 requirements for broadband random vibration, ensuring reproducible outcomes across every run.

• Concerned about inconsistent force output affecting test validity? The DSP closed-loop controller maintains precise force output, ensuring reproducible outcomes across every run.

• Tired of time-consuming setup and monitoring? The integrated system with matched components eliminates integration risk and shortens commissioning time, streamlining your testing process.

• Need to run multiple excitation profiles? Five excitation modes in one bench cover fixed frequency, sweep, sine, random, and shock testing, eliminating the need for multiple dedicated instruments.

By choosing this MIL STD 810G Vibration Testing Machine, you are investing in a dependable partner for your lab's daily operations, designed to deliver accuracy and reliability where it matters most.

---

Warranty & Support

We provide a 1-year manufacturer’s warranty covering parts and labor. Technical support, installation assistance, and operational training are also available. Replacement parts and consumables are available throughout the product’s service life.

Call to Action

Request a Quotation or Technical Datasheet: Contact us for more information, customized configurations, and solutions tailored to your specific requirements.
