Martindale Abrasion and Pilling Tester GT-C13

The Martindale Abrasion and Pilling Tester GT-C13 is an advanced testing machine for assessing the abrasion resistance and pilling tendency of textiles, leather, and other materials. This machine is directly available for factory purchase and includes on-site installation and commissioning services by engineers.

Product Details

• Model: 9 Abrading Tables
• Standards Compliance:
• Abrasion Testing Standards: GB/T 21196.2, GB/T 13775, ISO 12947, ASTM D4966, CEN/TS-16611, IWS TM 112, M&S P19, Next 18, SN 198529, TWC 112, JIS L1096 (optional ISO17076-2 ball plate method)
• Pilling Testing Standards: GB/T 4802.2, ISO 12945-2, ASTM D4970, IWS TM 196, M&S P17, Next TM26, SN 198525

Key Features

1. Testing Pattern: Uses the Lissajous figure for accurate abrasion and pilling evaluation.
2. Working Positions: 9 positions, adaptable to varying sample loads.
3. Counting Methods: Count up and count down functions for flexible testing.

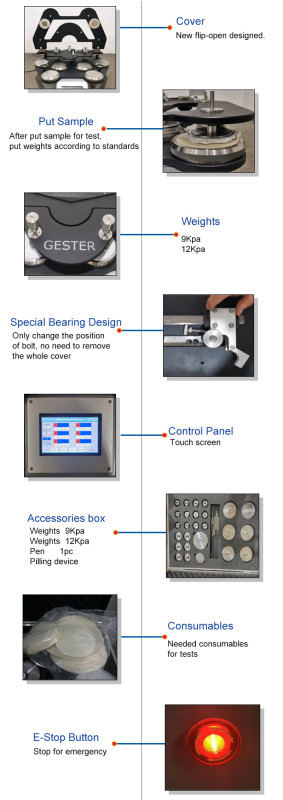

4. Convenient Sample Inspection: Individual sample holders are removable without lifting the top motion plate, facilitating easy examination.
5. Standard Weights: Includes 9 and 12 kPa weights for comprehensive testing.
6. User-Friendly Interface: Equipped with a 7-inch color touch screen with PLC control, supporting both Chinese and English.
7. Durable Construction: Key components and weights are crafted from stainless steel for robustness.
8. High-Quality Motion Plate: The top motion plate, made from 316 aluminum alloy, is specially designed to prevent distortion and ensure accuracy.

Applications

The Martindale Abrasion and Pilling Tester is widely used across industries to test: Textiles (such as fabrics and socks), Leather goods, Coated upholstery, Carpets, Wood finishes, Shirt collars

The GT-C13 is a highly reliable tool for quality control, providing standardized testing and ensuring durability and appearance retention of products.



Key Specifications: Martindale Abrasion and Pilling Tester GT-C13B-9

Model: GT-C13B-9
Working Positions: 9
Control Mode: PLC control with touch screen display
Counter Range: 0 to 999,999 cycles

---

Test Parameters

1.   Abrasion Test Pressure:

o   For Workwear, Upholstery, Bed Linen, and Technical Fabrics (12 kPa Nominal Pressure):

• Specimen Holder Weight: (198 ± 2) g
• Larger Loading Piece Weight: (597 ± 5) g
• Total Weight: (795 ± 7) g

o   For Apparel and Household Textiles (Excluding Upholstery and Bed Linen) (9 kPa Nominal Pressure):

• Specimen Holder Weight: (198 ± 2) g
• Smaller Loading Piece Weight: (397 ± 5) g
• Total Weight: (595 ± 7) g

2.   Pilling Test Pressure:

• Stainless Steel Loading Piece Weight: (155 ± 1) g
• Specimen Holder Weight: (260 ± 1) g
• Total Weight: (415 ± 2) g

---

Holder Specifications

• Effective Diameter:
• Abrasion Holder: Φ(28.65 ± 0.05) mm
• Pilling Holder: Φ(90 ± 0.10) mm

---

Operating Specifications

• Rotational Speed: 47.5 ± 2.5 rotations per minute (r/min)
• Pressing Weight:
• Mass: (2.5 ± 0.5) kg
• Diameter: Φ(120 ± 10) mm

---

Power and Dimensions

• Power Supply: AC 220V, 50/60 Hz
• Dimensions (L x W x H): 90 × 62 × 41 cm
• Weight: 150 kg

The Martindale GT-C13B-9 is equipped for rigorous abrasion and pilling testing, suitable for various textile applications with precise control, robust construction, and an easy-to-use interface.



ccessories Included:

Abrasion weight and holder	1set
Pilling weight and holder	1set
Standard abradents fabric	18 pcs (2 pcs for each head)
Standard backing foam 38mm	1 box of 60pcs
Standard woven felt discs 140mm	18 pcs (2 pcs for each head)
Standard woven felt discs 90mm	18 pcs (2 pcs for each head)
Photographs (copy one)	1set
Sample cutting die(Φ38mm , Φ90mm, Φ140mm)	1pc for each size
Pressing weight	1pc
Auxiliary device for specimen mounting	1pc
Steel ball	3pcs
Power line	1pc
English Manual and Certificate of quality	1 set
