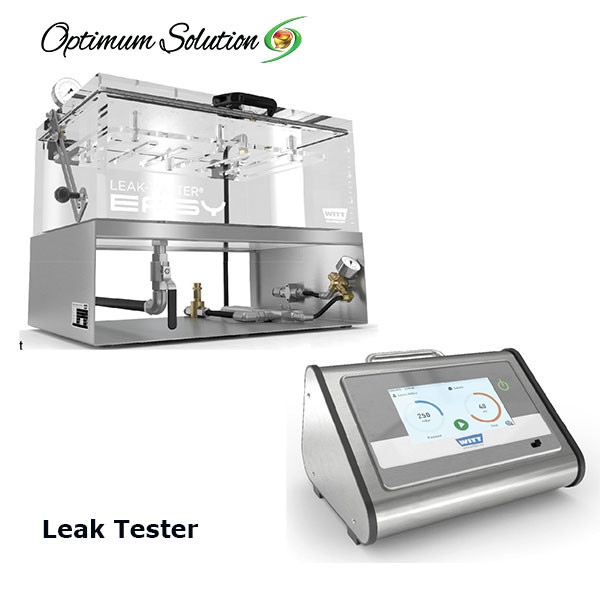

Struggling with compromised product integrity, difficult-to-spot micro-leaks, or complex testing equipment that requires extensive operator training? Quality control departments in the food, pharmaceutical, and industrial packaging sectors frequently face the challenge of ensuring their seals are absolutely airtight to prevent spoilage or contamination. Implementing an advanced visual Leak Detection System for flexible and rigid packaging directly resolves these critical quality assurance hurdles. By utilizing a highly intuitive water immersion vacuum technique, this instrument guarantees exact localization of even the smallest seal failures in under 30 seconds, entirely without the need for trace gases or complex calibrations.

Technical Specifications

• Model Numbers: EASY 0.5, EASY 1, EASY 1.5, EASY 2, EASY 3, EASY 4, EASY 5

• Product Part Number: LEAK-MASTER-EASY

• Testing Principle: Visual bubble inspection

• Calibration Requirement: Not required

• Maximum Vacuum Level: 200 mbar absolute (approx. -800 mbar to ambient pressure), highly adjustable

• Vacuum Generation Method: Compressed air powered venturi injector or optional electrical vacuum pump

• Compressed Air Pressure Range: Minimum 6 bar up to maximum 8 bar

• Connection Type: G 1/4

• Included Accessories: Hose connection OD 8 mm, hose connection OD 12 mm, adapter G 1/4 M to 1/4″ NPT

• Housing Material: Acryl Plexiglas - especially robust and refined against turning yellow

• Regulatory Approvals: ISO 9001 and ISO 22000; Regulation (EC) No 1935/2004 for food-grade gases

• Testing Period: Less than 30 seconds per test cycle

Key Benefits and Solving Manufacturing Challenges

Quality control facilities often lose critical time and resources dealing with expensive helium trace gas setups or relying on subjective squeeze tests that completely fail to identify micro-leaks. This equipment completely eliminates these operational pain points. By utilizing a highly reliable Leak Detection System testing platform, operators simply place the package into the water-filled chamber and evacuate the head space. As the package inflates, a steady stream of bubbles immediately pinpoints the exact location of the leak. This guarantees flawless seal verification and drastically improves your overall production throughput without requiring any specialized technical skills from your staff.

Complex machine maintenance and frequent recalibrations are major vulnerabilities for any facility aiming for uninterrupted, high-volume quality control. This instrument actively prevents these workflow bottlenecks through its completely calibration-free design and incredibly low maintenance requirements. The comprehensive capabilities of this industrial Leak Detection System visual inspection unit allow users to rely on a robust, non-yellowing acrylic housing and a simple compressed air-driven Venturi nozzle. This completely eliminates the need for delicate electrical connections near water, ensuring incredible long-term durability on the factory floor.

Core Operational Features

Every unit is meticulously engineered to maximize testing versatility while heavily prioritizing operator convenience during rapid production cycles.

• Unmatched Versatility: Perfect for testing all flexible and rigid kinds of packs, easily transitioning from pharmaceutical blister packs to large industrial components.

• Altitude Simulation: Can also be used to accurately simulate the pressure changes experienced during air freight transport to ensure packaging integrity before shipping.

• Intelligent Vacuum Protection: Features an integrated vacuum relief valve that automatically protects the device against accidental deep vacuum damage.

• Advanced Control Options: Can be upgraded with the Control Unit PLUS, offering pre-defined measurement programmes, permanent monitoring of set limit values, and seamless Ethernet data transmission for strict audit compliance.

Upgrade Your Quality Control Workflow

Modern packaging manufacturing demands instruments that deliver uncompromising accuracy, rapid sample processing, and absolute regulatory compliance. Integrating a top-tier Leak Detection System into your facility ensures your final packaged goods are perfectly sealed and entirely safe for the consumer market. Invest in state-of-the-art visual leak testing technology today to streamline your complex quality assurance protocols, eliminate costly product recalls, and achieve absolute confidence in every single batch you produce.
