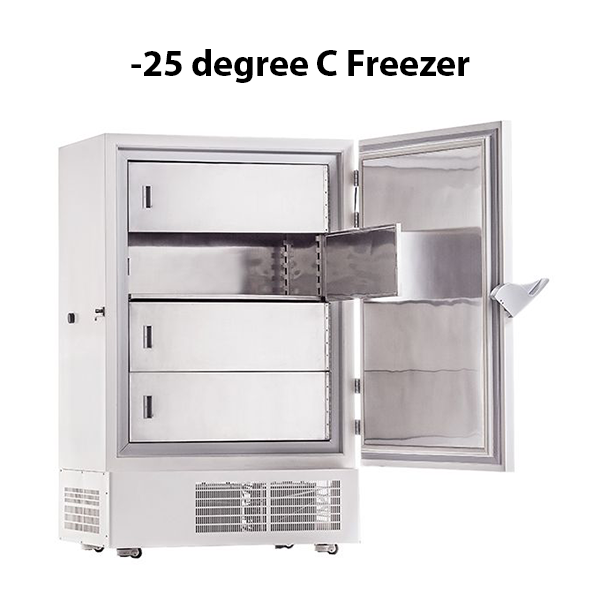

Do you need reliable, large-capacity freezer storage to protect temperature-sensitive samples, vaccines, or reagents? Are you concerned about sample loss due to temperature fluctuations, power outages, or inadequate alarm systems? The MSLF25IN940SWISS Laboratory Freezer is a high-performance upright freezer engineered to meet the demanding needs of modern laboratories, biobanks, and pharmaceutical facilities. With a spacious 936-liter capacity, a stable temperature range of -10°C to -25°C, and a robust security and alarm system, this freezer provides the dependable storage environment your critical materials require, ensuring both safety and compliance.

Why Choose the MSLF25IN940SWISS Laboratory Freezer? Solving Sample Security, Reliability & Monitoring Challenges

Protect your valuable research materials with intelligent features that directly address common lab storage pain points.

• Eliminate Risk of Sample Loss from Temperature Excursions: A temperature spike can ruin months of work. This laboratory freezer features a powerful cooling system with dual SECOP compressors, ensuring rapid temperature recovery after door openings and uniform stability throughout the 936-liter chamber. The microprocessor controller with a digital display allows precise adjustment and monitoring of the temperature from -10°C to -25°C.

• Ensure 24/7 Protection with Comprehensive Alarms: Unnoticed door openings or power failures are a major cause of sample loss. The unit is equipped with a multi-faceted alarm system that provides both audible buzzing and visible flashing light alerts for:

• High/Low temperature deviations

• Power failure (with a 72-hour backup alarm system)

• Sensor malfunction

• Temperature controller malfunction

• Door ajar

• Ambient temperature abnormalities

• Abnormal voltage

• Maintain Stable Temperatures and Energy Efficiency: Fluctuations in room temperature or voltage can impact freezer performance. The MSLF25IN940SWISS is built with high-density CFC-free urethane foam insulation for rigidity and temperature stability. It also features wide voltage tolerance (187~242V/AC) , ensuring consistent operation even in areas with unstable power supply.

• Enhance Sample Traceability and Data Integrity: Meeting regulatory standards requires reliable data. The freezer includes a standard USB port for convenient temperature data logging. An optional temperature data logger and remote alarm connection provide additional layers of monitoring and traceability for GMP and clinical trial environments.

Key Features for the Modern Laboratory

Engineered for durability, security, and ease of use:

• Large Capacity and Organized Storage: Offers 936 liters of storage space with 3 adjustable shelves. The upright design with an independent inner door minimizes cold air loss when accessing samples.

• Hygienic and Durable Construction: The interior is constructed from 304 stainless steel, offering excellent corrosion resistance and ease of cleaning. The exterior is durable color-sprayed steel.

• User-Friendly Design: Features an upright side door with a built-in handle and limited door hinge to prevent collisions. Lockable casters allow for easy mobility and secure positioning.

• Environmentally Responsible: Uses R404A refrigerant and CFC-free insulation, making it an environmentally conscious choice for your lab.

• Clear Digital Display: The LED digital display allows for clear observation of the current temperature at a glance.

Technical Specifications at a Glance

Product Identity & Core Function

• Product Name: Laboratory Freezer (Upright)

• Model Number: MSLF25IN940SWISS

• Primary Application: Secure, long-term storage of temperature-sensitive samples, reagents, pharmaceuticals, vaccines, and biological materials.

• Target Users: Research laboratories, clinical labs, biobanks, pharmacies, hospitals, and quality control facilities.

Performance & Capacity

• Total Capacity: 936 Liters / 33.05 cu.ft

• Temperature Range: -10°C to -25°C (adjustable)

• Climate Class / Ambient Temperature Range: 10°C to 32°C

• Cooling Method: Direct cooling

• Defrost Type: Manual

• Refrigerant: R404A

• Power Consumption: 10 kWh/24h

• Noise Level: 50 dB

Cooling System & Controls

• Compressor: Dual SECOP compressors (high reliability)

• Sensor Type: PTC

• Temperature Controller: Microprocessor with digital display

• Display: LED digital display

Construction & Materials

• Interior Material: 304 Stainless Steel

• Exterior Material: Color sprayed steel

• Insulation: High-density Polyurethane Rigid Foam (PURF), CFC-free

• Door: Upright side door with independent inner door to reduce cold loss.

• Shelves: 3 adjustable shelves

Dimensions & Weight

• External Dimensions (W x D x H): 1304 × 1000 × 2017 mm

• Internal Dimensions (W x D x H): 1000 × 700 × 1335 mm

• Package Dimensions (W x D x H): 1350 × 1080 × 2150 mm

• Net Weight: 378 kg

• Gross Weight: 413 kg

• CBM (Shipping): 3.35 m³

• Container Load:

• 20GP: 8 units

• 40GP: 16 units

• 40HQ: 16 units

Electrical Specifications

• Voltage/Frequency: 220V / 50Hz

• Power (Rated): 1000W

• Current: 5.8A

• Voltage Tolerance: 187 ~ 242V AC (wide voltage design)

Alarm & Safety Systems

• Alarm Types:

• High Temperature Alarm

• Low Temperature Alarm

• Power Failure Alarm (with 72-hour backup)

• Sensor Malfunction Alarm

• Ambient Temperature Alarm

• Abnormal Voltage Alarm

• Temperature Controller Malfunction Alarm

• Door Ajar Alarm

• Alarm Indications: Audible buzzing and visible flashing light

• Power Failure Protection: Start-delay function to prevent compressor damage on simultaneous restart.

• Controller Protection: Password protection prevents unauthorized parameter changes.

Standard Accessories & Options

• Standard:

• Lockable casters (for mobility)

• Test hole (1 x 18mm)

• USB Port for data export

• Shelves (3)

• Optional:

• Temperature Data Logger

• Remote Alarm connection

Ready to Secure Your Valuable Samples with a Reliable, High-Capacity Freezer?

Don't let inadequate storage compromise your research. The MSLF25IN940SWISS delivers the capacity, stability, and alarm systems your lab needs for worry-free sample preservation.
