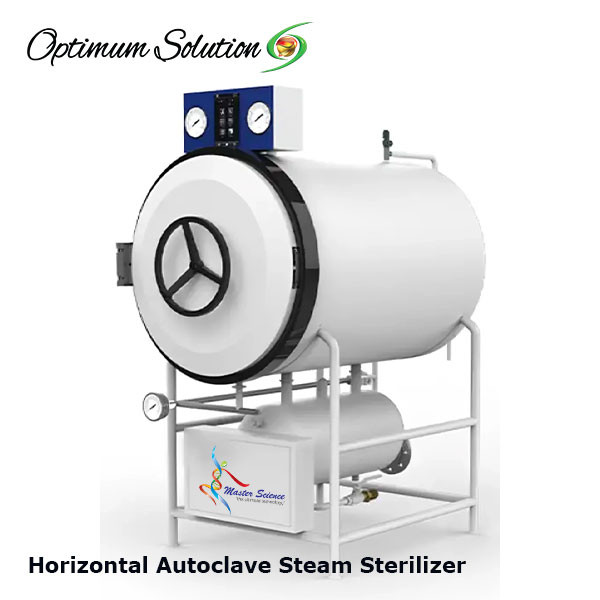

Welcome to the next level of laboratory sterilization. When precision, safety, and reliability are absolute requirements, upgrading your facility with a high-performance laboratory horizontal autoclave system ensures your critical instruments and culture media are flawlessly processed. This robust cylindrical pressure device utilizes saturated steam to provide consistent and thorough sterilization cycles. Designed with a built-in high-speed steam generator, it eliminates the necessity for an external steam source, saving both time and facility resources. As a versatile laboratory horizontal autoclave, it easily adapts to the stringent demands of modern research, clinical, and industrial environments.

Technical Specifications

• Model Number: MSBAHZ-501SWISS

• Capacity: 150L

• Designed Pressure: 0.28MPa

• Rated Working Pressure: 0.12MPa to 0.23MPa

• Rated Operating Temperature: 121°C to 134°C

• Ambient Temperature Range: 5°C to 40°C

• Adjustable Drying Temperature Range: 115°C to 134°C

• Temperature Precision: 0.1°C

• Sterilization Timing Adjustable Range: 1 to 99 minutes

• Adjustable Drying Timing Range: 1 to 99 minutes

• Built-in Steam Generator: Yes

• Vacuum System: No

• Chamber Material: 304 Stainless Steel

• Chamber Dimensions: Φ500 by 820mm

• Maximum Operating Altitude: 2500m

• Power Consumption: 10KW

• Power Supply: AC380V or AC220V at 50/60Hz

• External Dimensions: 680mm by 1270mm by 1550mm

• Net Weight: 230kg

Key Benefits and Features

Transform your daily workflow with an efficient laboratory horizontal autoclave device that is meticulously built to maximize uptime. This specialized unit combines an intuitive LCD touch screen interface that displays real-time temperature, time, and operating status, allowing users to monitor delicate processes clearly. The integrated auxiliary drying function ensures that all sterilized items, such as dressings and glassware, emerge completely dry and ready for immediate application. For maximum operator and laboratory safety, automatic over-temperature and over-pressure protection mechanisms are inherently programmed to safeguard both the user and the internal load.

Resolving Common Customer Pain Points

Struggling with inconsistent sample separation, wet dressing outputs, or unreliable sterilization runs? Frequent equipment downtime and manual water replenishment can severely disrupt sensitive daily laboratory schedules. Our dependable laboratory horizontal autoclave solution completely automates the operational sequence from initial water injection to final drying without human intervention. By securely connecting directly to an external water source, it successfully eliminates manual refilling errors. Furthermore, the highly precise 0.1°C temperature tracking guarantees reproducible results every single cycle, effectively eradicating the persistent risk of under-sterilized or heat-damaged research materials.

Ready to Upgrade Your Lab?

Ready to elevate your facility's processing and safety capabilities? Invest in this premium laboratory horizontal autoclave today to experience unparalleled reliability, accuracy, and operational ease. Contact our dedicated sales team to request a formal quote, check stock availability, or learn more about how this advanced sterilizer can permanently resolve your daily lab processing challenges.
