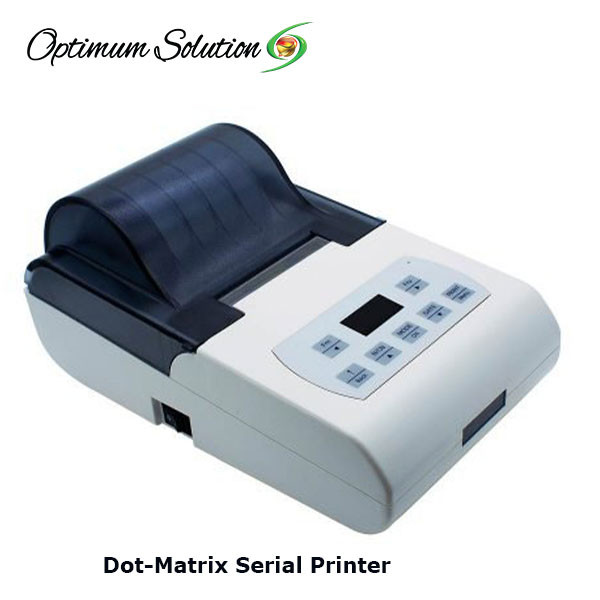

In the demanding environment of modern laboratories, meticulous data recording is essential for compliance and accuracy. Upgrading your recording capabilities with a high-speed TX-110 dot-matrix serial printer system guarantees that every measurement is documented clearly and durably. Designed specifically for seamless integration with precision balances, this instrument supports long-term data retention that aligns perfectly with stringent ISO and GLP procedures. With an intuitive OLED display and multiple dedicated operational modes, this dot-matrix serial printer brings unmatched versatility to your daily analytical workflows.

Technical Specifications

• Model Number: TX-110

• Product Code: AC030

• Printer Type: Impact dot-matrix serial printer

• Character Size: 1.7mm Width by 2.6mm Height (approximate)

• Printer Paper Type: Normal paper

• Printer Paper Width: 57mm

• Printer Paper Diameter: 50mm maximum

• Print Speed: 1.7 lines per second (approximate)

• Printer Head Life: 1,000,000 lines

• Display Technology: OLED 128x64 Dot matrix 0.96 inch

• Internal Clock: Built-in for precise timestamping

• Communication Interface: RS-232C (male Dsub-9pin)

• Supported Baud Rates: 300, 600, 1200, 2400, 4800, 9600, 14.4k, 19.2k, 38.4k, 115.2k

• External Power Supply Input: 100-240 V AC at 50/60Hz

• External Power Supply Output: 12 V DC / 2A

• Operational Power Consumption: 8W during active printing

• Standby Power Consumption: 0.5W during standby mode

• Operating Temperature Range: 5°C to 45°C

• Operating Humidity Range: 10% to 80% (non-condensing)

Key Benefits and Features

Transform your analytical reporting with a reliable laboratory dot-matrix serial printer device engineered to maximize efficiency and data accuracy. This unit incorporates several specialized print modes, including Direct, Tare/Net/Gross, Sum, Average, Formulation, and Pipette Calibration, allowing researchers to customize outputs to their exact experimental needs. The built-in clock ensures that all records are accurately timestamped, a critical feature for securing ISO/GLP compliance and promoting overall laboratory safety through strict traceability. Furthermore, the robust print head, rated for one million lines, delivers exceptional longevity, minimizing the need for frequent hardware replacements and thereby enhancing operational continuity.

Resolving Common Customer Pain Points

Struggling with fading thermal paper records or cumbersome manual data transcription? Inconsistent reporting and lost data can lead to failed audits and compromised research integrity. Our advanced impact dot-matrix serial printer solution utilizes standard paper and mechanical impact printing technology, ensuring that your vital weight values and calibration logs remain legible for years without fading. By automating complex calculations like sample averages, formulation weights, and comparator ranges directly from your balance, this dot-matrix serial printer completely eliminates costly human transcription errors. The user-defined coefficient modes and automatic timing functions further relieve technicians from repetitive manual tracking, freeing up valuable time for core scientific tasks.

Ready to Upgrade Your Lab?

Secure your crucial analytical data today. Invest in this dot-matrix serial printer to experience flawless compliance, enhanced productivity, and absolute peace of mind. Contact our technical sales team to request a formal quote, check current stock, or learn how seamlessly this printer integrates with your existing laboratory infrastructure.
