Kjeldahl Digester: Graphite Digestion System with Scrubber - 10 Tubes - RT+5 to 550 °C

(0 reviews)

Inhouse product


Price
৳899,995.00 ৳900,000.00 /Pc
Quantity
Total Price
Share

Reviews & Ratings

0 out of 5.0
(0 reviews)
There have been no reviews for this product yet.

Introduction

Uneven block heating and escaping acid fumes make Kjeldahl digestion slow, unsafe and hard to repeat. The MSBKD10RSSWISS Kjeldahl digester with fume scrubber uses a high-density graphite block, 40-step programs and a gas collection hood with exhaust scrubber.

Technical Specifications

Here are the main technical specifications of the Kjeldahl Digester MSBKD10RSSWISS with Gas Hood and Scrubber from the supplier data:

  • Model: MSBKD10RSSWISS (Master Science)
  • Capacity: 10 tubes, 300 mL glass, Ø43.5 mm
  • Temperature range: RT +5 °C to 550 °C
  • Temperature accuracy: ±1 °C
  • Heating block: high-density graphite
  • Heating rate: about 8 to 15 °C/min
  • Programs: 1 to 40 segments or single-point heating; 9 formula groups
  • Timed shutdown: 1 to 999 minutes
  • Display: 5.6 inch colour touch screen (English and Chinese)
  • Control: PID self-tuning, solid state relay
  • Protection: over-temperature, over-pressure and over-current; power outage restart

Standard Accessories Included

  • Kjeldahl digester with graphite heating block
  • 10 glass digestion tubes, 300 mL

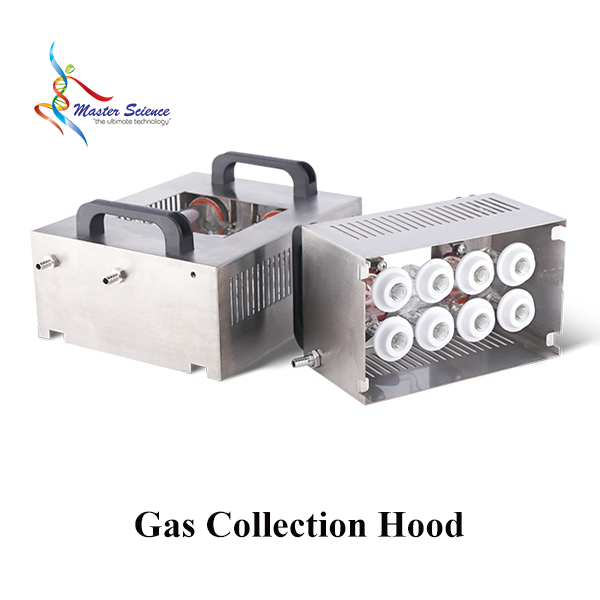

  • Gas collection hood
  • Exhaust system scrubber

Items Excluded

  • Kjeldahl distillation unit
  • Catalysts and acids
  • Any item not listed above, confirmed at quotation

Pre-installation Requirement

  • Place in a fume hood or ventilated area.
  • Mains supply rated for the heater load.
  • Water and alkali solution for the scrubber.

Key Benefits

How the Kjeldahl Digester MSBKD10RSSWISS with Gas Hood and Scrubber helps your daily work:

Efficiency

Multi-segment programs and timed shutdown let digestion run without an operator at the bench.

Accuracy

The graphite block and PID self-tuning give ±1 °C control and even heat in all 10 tubes.

Safety and comfort

The gas hood and scrubber capture acid fumes, and protection modules shut down on faults.

Read more on the Master Science Kjeldahl digester page. You can also see our Kjeldahl digestion units.

Key Features

Key features of the Kjeldahl Digester MSBKD10RSSWISS with Gas Hood and Scrubber:

  • High-density graphite block to 550 °C
  • 5.6 inch colour touch screen
  • Up to 40 program segments
  • Gas collection hood and scrubber
  • Power outage restart

Solving Common Lab Problems

Common problems the Kjeldahl Digester MSBKD10RSSWISS with Gas Hood and Scrubber helps you solve:

Acid fumes escaping into the lab? The hood and scrubber collect and neutralize them.

Uneven digestion between tubes? Graphite gives uniform block temperature.

Complex temperature ramps? Program up to 40 segments.

Warranty & Support

We provide a 1-year manufacturer's warranty covering parts and labor. Technical support, installation assistance, and operational training are also available. Replacement parts and consumables are available throughout the product's service life.

Request a Quotation or Technical Datasheet

Request a Quotation or Technical Datasheet: Contact us about the Kjeldahl Digester MSBKD10RSSWISS with Gas Hood and Scrubber for your laboratory for more information, customized configurations, and solutions tailored to your specific requirements.
