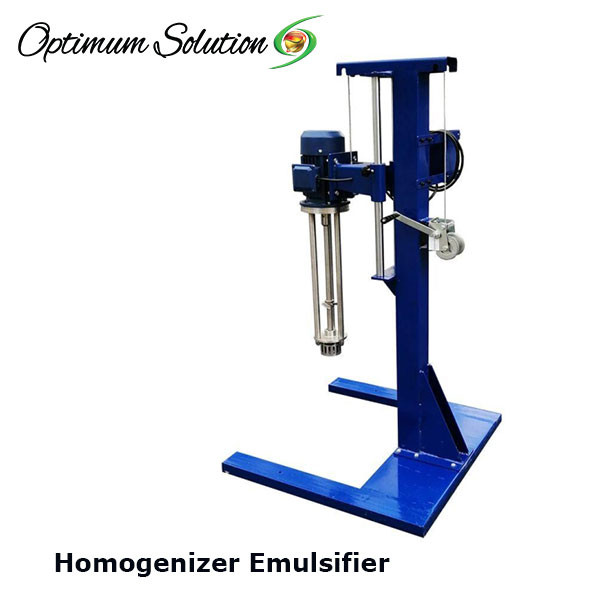

Are you struggling with inconsistent emulsion stability or time-consuming mixing processes? In modern laboratory and production environments, achieving a perfectly uniform dispersion is critical for product quality. By utilizing our advanced production type homogenizer emulsifier system, you can transform immiscible liquids into stable, finely divided emulsions in a fraction of the time required by standard mixers.

Technical Specifications

The following performance metrics outline the precision and mechanical capabilities of our high-shear series, designed to meet the rigorous demands of industrial research and small-scale production.

Model Number: MSJRH2200SWISS

• Power Output: 2.2KW High-Efficiency Motor

• Emulsifying Head Diameter: Precise φ90mm Configuration

• Speed Regulation Range: 60 to 2800rpm Variable Control

• Lifting Stroke Distance: 600mm Vertical Range

• Input Voltage: 220V/ 380V at 50HZ Frequency

• Mixing Rod Length: 650mm Stainless Steel Shaft

• Overall Dimensions: 1650 x 900 x 930mm

• Total Equipment Weight: 80KG

Model Number: MSJRH3000SWISS

• Power Output: 3KW Industrial Grade Motor

• Emulsifying Head Diameter: Precise φ90mm Configuration

• Speed Regulation Range: 60 to 2800rpm Variable Control

• Lifting Stroke Distance: 720mm Extended Vertical Range

• Input Voltage: 380V at 50HZ Frequency

• Mixing Rod Length: 850mm Extended Stainless Steel Shaft

• Overall Dimensions: 2200 x 1150 x 960mm

• Total Equipment Weight: 140KG

Solving Your Laboratory Processing Challenges

Researchers often face the frustration of sample re-aggregation and equipment downtime. Traditional stirrers frequently fail to provide the necessary hydraulic shear required for complex chemical or cosmetic formulations. Choosing this heavy duty production type homogenizer emulsifier eliminates these pain points by employing a high-frequency rotor-stator interaction. This mechanism subjects your materials to hundreds of thousands of shear actions per minute, ensuring that even the most stubborn materials are split, broken, and dispersed with absolute uniformity.

Key Benefits of Industrial Homogenization

The integration of high-speed rotation and centrifugal extrusion provides several advantages for your workflow:

The high-speed drive generates immense kinetic energy that allows for the fine emulsification of immiscible materials in an instant. This speed significantly reduces processing time compared to standard lab equipment.

Precision engineering in the stator-rotor gap ensures that every batch meets exact specifications. This level of control is vital for pharmaceutical and food grade applications where consistency is a non-negotiable requirement.

The robust construction and high-quality motors are built for longevity. This reduces the risk of mechanical failure and ensures your laboratory operations remain productive without frequent maintenance interruptions.

With a wide speed regulation range, this equipment is suitable for various viscosities and materials, including adhesives, paints, cosmetics, and resins.

Advanced Design and Operational Efficiency

Whether you are working with asphalt or delicate pharmaceutical compounds, the reliable production type homogenizer emulsifier equipment provides the versatility needed for diverse industrial sectors. The high-speed impact tearing and turbulence created within the mixing head ensure that particles are reduced to the smallest possible size for maximum solubility.

Precision Engineering for Better Results

How much time is lost to manual batch corrections? When you invest in a high performance production type homogenizer emulsifier, you are choosing a solution that prioritizes repeatability. The adjustable lifting stroke and varied mixing rod lengths allow for seamless integration with different vessel sizes, making it an adaptable cornerstone for any laboratory.

In conclusion, this versatile production type homogenizer emulsifier solution is more than just a mixer; it is a precision tool designed to solve the most difficult dispersion challenges. Improve your output quality and streamline your production today.

Ready to enhance your lab's performance? Contact us for a quote on the JRH series.
