Introduction to Precision PV Module Reliability Testing

When your laboratory needs to verify that photovoltaic modules can withstand the effects of high temperature and humidity followed by sub-zero temperatures, standard equipment often falls short. Inconsistent climate control can compromise test validity, lead to unreliable module lifetime data, and cost you valuable time and resources.

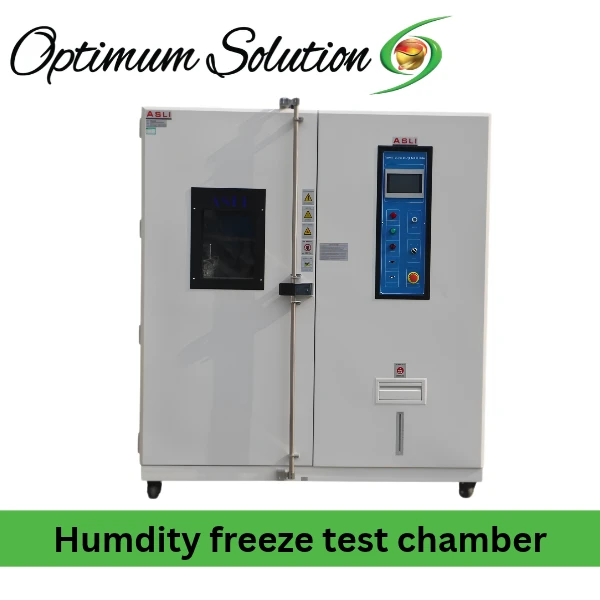

The Humidity Freeze Test Chamber IEC61215 is engineered to eliminate these variables. As a cornerstone of the Humidity Freeze Test Chamber IEC61215 series, this unit is built for PV module manufacturers, testing laboratories, and research institutes that require unwavering performance for humidity-freeze, thermal cycling, and damp heat testing. This Humidity Freeze Test Chamber IEC61215 provides a reliable, reproducible environment for your most critical PV module qualification tests. We understand that in your line of work, precision is not just a feature—it is a necessity.

Technical Specifications

Here is a detailed breakdown of the technical capabilities for the Humidity Freeze Test Chamber IEC61215. Our models are designed to meet rigorous IEC 61215 standards.

• Model/Part Number: TH-80

• Internal Dimension (W×H×D): 400×500×400 mm

• External Dimension (W×H×D): 950×1650×950 mm

• Approx. Weight: 150 kg

• Model/Part Number: TH-150

• Internal Dimension (W×H×D): 500×600×500 mm

• External Dimension (W×H×D): 1050×1750×1050 mm

• Approx. Weight: 180 kg

• Model/Part Number: TH-225

• Internal Dimension (W×H×D): 600×750×500 mm

• External Dimension (W×H×D): 1200×1900×1150 mm

• Approx. Weight: 250 kg

• Model/Part Number: TH-408

• Internal Dimension (W×H×D): 600×850×800 mm

• External Dimension (W×H×D): 1200×1950×1350 mm

• Approx. Weight: 320 kg

• Model/Part Number: TH-800

• Internal Dimension (W×H×D): 1000×1000×800 mm

• External Dimension (W×H×D): 1600×2000×1450 mm

• Approx. Weight: 400 kg

• Model/Part Number: TH-1000

• Internal Dimension (W×H×D): 1000×1000×1000 mm

• External Dimension (W×H×D): 1600×2100×1450 mm

• Approx. Weight: 450 kg

• Temperature Range: Low Temperature options: 25°C, 0°C, -20°C, -40°C, -60°C, -70°C

• High Temperature Options: 150°C, 180°C, 200°C

• Humidity Range: Optional: 20% to 98% R.H., 10% to 98% R.H., or 5% to 98% R.H.

• Analytic Accuracy: 0.1°C; 0.1% R.H.

• Distribution Uniformity: ±2.0°C; ±3.0% R.H.

• Control Accuracy: ±0.5°C; ±2.5% R.H.

• Temperature Rising Speed Rate: Approx. 0.1 to 3.0°C/min

• Temperature Falling Speed Rate: Approx. 0.1 to 1.5°C/min

• Interior Material: SUS 304# stainless steel

• Exterior Material: Stainless steel or cold-rolled steel with paint coating

• Insulation Material: High-temperature resistant, high-density polyurethane foam

• Cooling System: Wind cooling or water cooling / single segment compressor (-40°C), double segment compressor (-70°C)

• Compressor: French Tecumseh Brand, Germany Bizer Brand

• Power Supply: AC 220V 1ph 3 lines, 50/60Hz or AC 380V 3ph 5 lines, 50/60Hz

Standard Accessories included:

• Test chamber base unit

• 7-inch touch screen controller

• Stainless steel interior chamber

• USB data logging port

• Power cable

• Operation manual

Items Excluded:

• Inner door with operation hole (optional)

• Recorder (optional)

• Water purifier (optional)

• Dehumidifier (optional)

• Calibration certificate (available upon request)

• Extended warranty (available for purchase)

Pre-installation requirement:

• A stable, level surface with sufficient load-bearing capacity

• A dedicated power outlet matching the unit's specifications (AC 220V or 380V)

• Adequate ventilation and clearance around the unit for heat dissipation

• Water supply for humidity testing (if applicable)

• Operator training on standard safety procedures for climate chambers is recommended

Key Benefits: Precision, Efficiency, and Safety for Your Lab

Our Humidity Freeze Test Chamber IEC61215 is more than just a piece of equipment; it is a solution designed to address the real-world challenges you face daily. We have focused on core features that deliver tangible benefits, enhancing your lab's productivity and the reliability of your outcomes.

• IEC 61215 Compliant Testing: Supports Humidity-Freeze (MQT 12), Thermal Cycling (MQT 11), and Damp Heat (MQT 13) tests required by IEC 61215. This directly solves the common pain point of non-compliant test results, giving you confidence in your PV module qualification data. For more information on our range of precision lab equipment, visit our website at https://os4u.com.bd/.

• Precise Temperature and Humidity Control: The PID control system and 7-inch touch screen maintain ±0.5°C and ±2.5% R.H. accuracy, ensuring repeatable test results. This engineering excellence is a hallmark of ASLi's 28 years of manufacturing experience. You can see their full capabilities at https://www.aslitesting.com/.

• Wide Temperature Range: From -70°C to +200°C, covering extreme humidity-freeze profiles and thermal cycling conditions. This versatility means one chamber can serve multiple testing protocols, making it a cost-effective investment for your facility.

• Energy-Efficient Refrigeration: The electronic expansion valve system and high-density insulation reduce power consumption and operating cost, minimizing equipment downtime and protecting your investment over years of daily use.

• Corrosion-Resistant Construction: The SUS 304# stainless steel interior resists corrosion from high humidity and repeated cycling, simplifying cleaning and extending service life.

• Comprehensive Safety Protection: Over-temperature, over-humidity, compressor overload, and water-shortage protection ensure safe operation, protecting both operators and samples.

Solving the Problems That Slow Lab Work Down

We know the frustrations that come with routine PV module testing. The Humidity Freeze Test Chamber IEC61215 is built to eliminate them.

• Struggling with inconsistent temperature and humidity affecting test validity? The PID controller and high-density insulation maintain stable conditions with ±0.5°C and ±2.5% R.H. control accuracy, ensuring reproducible outcomes across every run.

• Concerned about equipment downtime disrupting your workflow? The durable stainless steel construction and comprehensive safety protection system are built for the long haul, minimizing the risk of unexpected breakdowns and protecting your schedule.

• Tired of time-consuming setup and monitoring? The 7-inch touch screen and programmable controller allow for precise parameter setting and unattended operation, streamlining your testing process.

• Need to comply with multiple international standards? This chamber supports IEC 61215, IEC 61646, UL 1703, IEC 62108, IEEE 1513, and IEC 61730, eliminating the need for multiple dedicated instruments.

By choosing this Humidity Freeze Test Chamber IEC61215, you are investing in a dependable partner for your lab's daily operations, designed to deliver accuracy and reliability where it matters most.

Warranty & Support

We provide a 1-year manufacturer’s warranty covering parts and labor. Technical support, installation assistance, and operational training are also available. Replacement parts and consumables are available throughout the product’s service life.

Call to Action

Request a Quotation or Technical Datasheet: Contact us for more information, customized configurations, and solutions tailored to your specific requirements.
