Are you facing challenges with maintaining strict environmental conditions for large-scale pharmaceutical stability trials? The HUD-E705-13 drug stability walk-in chamber for research is engineered to provide a highly stable, uniform, and regulatory-compliant environment for long-term drug testing. With a massive 13,794-liter capacity and advanced microprocessor control, this system ensures that your samples remain protected under the precise conditions required by international pharmaceutical standards.

Technical Specifications

Designed for consistent, high-capacity performance in regulated environments, the specifications for the HUD-E705-13 drug stability walk-in chamber for research include:

• Model/Part Number: HUD-E705-13

• Internal Capacity: 13,794 L (1900 x 3300 x 2200 mm)

• Temperature Range: 20°C to +60°C (Accuracy: ±0.5°C)

• Humidity Range: 20% to 95% RH (Precision: 40%–95% RH)

• Interior Material: Stainless Steel 304

• Refrigeration: R134A (Environmentally friendly)

• Control System: Touch screen with Audit Trail (21 CFR Part 11 compliant)

• Communication: RS-485, LAN, and Internet port

• Power: AC220 V ± 10%, 50 Hz (Installed Power: 6 kW)

• Safety Features: Over-temperature cut-off, earth leakage trip, and emergency internal button

Key Benefits for Your Laboratory

Efficiency and regulatory reliability are the cornerstones of successful drug stability programs. The HUD-E705-13 drug stability walk-in chamber for research enhances these factors by providing an automated, audit-ready environment that eliminates the risks of manual logging and environmental drift.

Uniform Environmental Control

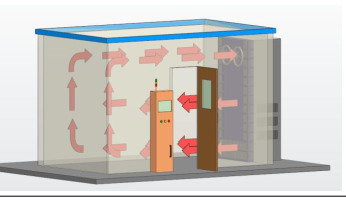

The system features advanced air circulation and non-conductive insulation to ensure temperature and humidity uniformity throughout the entire 13,794-liter volume. This consistency is essential for meeting the validation conditions (such as 40°C/75% RH) required by global regulatory agencies.

Solving Common Lab Challenges

Many pharmaceutical facilities face bottlenecks due to outdated data management and lack of remote monitoring capabilities. Our system solves these pain points with built-in audit trail functions and software that provides graphical analysis of all measured values. By integrating with existing alarm systems and providing 21 CFR Part 11 compliant documentation, the chamber minimizes the manual burden of compliance reporting.

Advanced Features

The chamber is equipped with an anti-fog viewing window and internal illumination, allowing for safe visual inspection of samples without disrupting the internal environment. The inclusion of redundant safety devices ensures that even in the event of a power fluctuation, your samples are protected through automated circuit shutdowns and optional UPS backup integration.

Why Choose This Technology?

Choosing a reliable HUD-E705-13 drug stability walk-in chamber for research means investing in the future of your pharmaceutical testing workflow. With professional calibration reports provided by an ILAC/CNAS certified laboratory, this system is ready for immediate validation and integration into your high-stakes stability study programs.

Built for Safety and Longevity

Every electrical cable is tagged, and the integrated power control panel ensures that faults are isolated to specific circuits, preventing total system downtime. When you rely on the HUD-E705-13 drug stability walk-in chamber for research to support your quality processes, you are choosing an instrument that balances large-scale utility with precise, safety-first engineering.

Are you ready to scale your pharmaceutical stability testing with confidence? Contact our technical team today to discuss your site integration needs and the full scope of our validation support.
