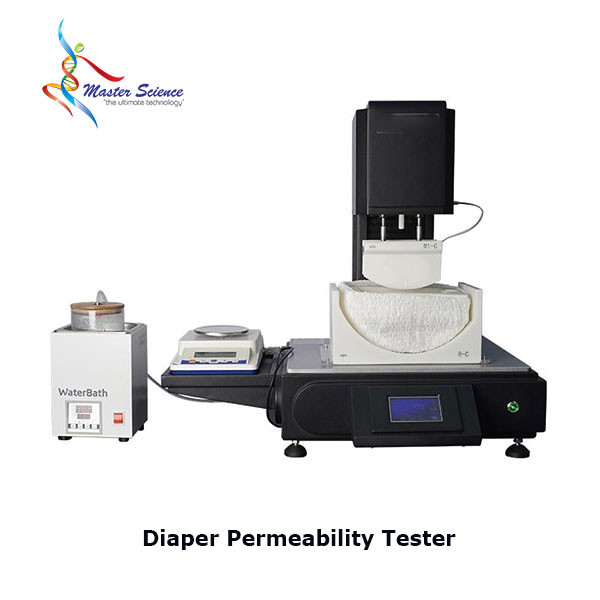

The Diaper Permeability Tester MSGT-CN15SWISS is a high-precision laboratory instrument developed for evaluating diaper absorption performance, including absorption speed, rewetting, and leakage characteristics. Widely used in hygiene product testing labs, this system ensures compliance with international standards while delivering consistent and repeatable results for both baby and adult diapers.

Technical Specifications

• Model: MSGT-CN15SWISS

• Timing Accuracy: 0.01 s

• Liquid Dispensing Accuracy: ±2 mL

• Flow Rate Range: 200–800 mL/min

• Water Tank Capacity: 2 L

• Baby Diaper Volume: 40±2 ml / 60±2 ml / 80±2 ml

• Adult Diaper Volume: 100±2 ml / 150±2 ml

• Baby Flow Rate: 480±10 mL/min

• Adult Flow Rate: 720±15 mL/min

• Balance Accuracy: 0.01 g (Range: 300 g)

• Dimensions: 820 × 575 × 750 mm

• Weight: 62 kg

• Power Supply: AC 220V, 50Hz, 100W

Key Benefits

Accurate Absorption Performance Testing

The Diaper Permeability Tester MSGT-CN15SWISS advanced automated solution for precise absorption and leakage measurement ensures reliable evaluation of diaper quality with minimal human error.

Faster Testing Workflow

With full automation of liquid addition and pressure application, the Diaper Permeability Tester MSGT-CN15SWISS efficient laboratory system for high-throughput diaper testing operations significantly reduces testing time and increases productivity.

Consistent and Repeatable Results

Equipped with precision sensors and automated data processing, the Diaper Permeability Tester MSGT-CN15SWISS dependable platform for rewet and permeability analysis in hygiene products delivers consistent results across multiple test cycles.

Features

Fully Automated Operation

• Automatic liquid addition, pressurization, and timing

• One-button testing process for ease of use

High-Precision Liquid Control

• Peristaltic pump ensures accurate liquid volume delivery

• Stable flow rate for repeatable testing conditions

Advanced Data Analysis

• Automatic calculation of average, standard deviation, and variation

• Built-in thermal printer for instant reporting

Durable and Reliable Design

• 316L stainless steel water tank for corrosion resistance

• High-quality electrodes with fast response and durability

Smart User Interface

• Touchscreen control with bilingual (Chinese & English) interface

• PC connectivity for advanced data management

Solve Common Lab Challenges

Struggling with inconsistent diaper testing results?
Manual processes often lead to variations. This automated system ensures stable and repeatable measurements.

Facing delays in quality control testing?
Automation reduces testing time and increases throughput for faster decision-making.

Concerned about long-term equipment reliability?
Industrial-grade materials and precision components ensure durability and reduced maintenance.

Applications

• Baby diaper absorption and permeability testing

• Adult diaper leakage and rewet analysis

• Hygiene product quality control laboratories

• Research and product development

Why Choose This System?

The Diaper Permeability Tester MSGT-CN15SWISS combines automation, precision, and durability, making it a reliable choice for laboratories seeking accurate diaper performance testing aligned with GB/T standards.
