Introduction to Precision Cryogenic Storage

When your cell therapy laboratory or biobank needs to preserve biological products through a complete freeze-thaw cycle, the container you choose is critical. A bag that cracks at cryogenic temperatures, leaks during thawing, or fails to maintain sterility can destroy irreplaceable cell samples, invalidate batch records, and cost you valuable time and resources.

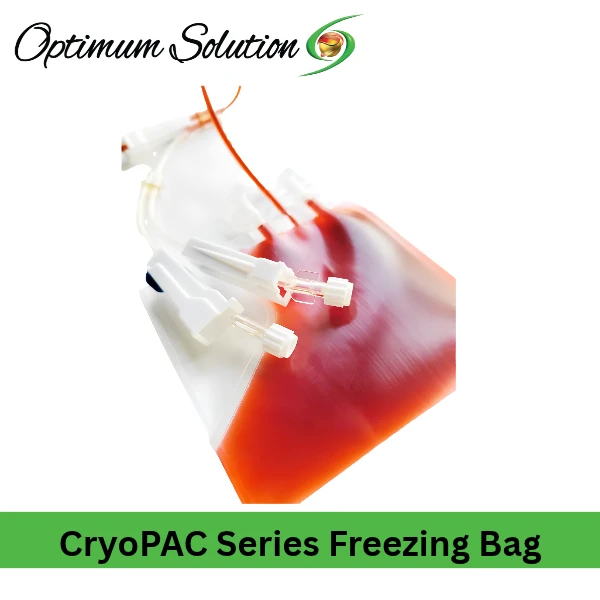

The CryoPAC Series Freezing Bag is engineered to eliminate these risks. As a cornerstone of the CryoPAC Series Freezing Bag range, this product is built for cell therapy laboratories, biobanks, and research facilities that require uncompromising performance for cryogenic storage at temperatures down to -196°C and thawing at +37°C. This CryoPAC Series Freezing Bag provides a reliable, validated container for your most critical biological products, with sterile packaging and durable EVA construction. We understand that in your line of work, sample integrity is not just a feature—it is a necessity.

Technical Specifications

Here is a detailed breakdown of the technical capabilities for the CryoPAC Series Freezing Bag. Our models are designed to meet rigorous laboratory and clinical standards.

• Catalog Number: 5411000

• Product: CryoPAC FB025

• Dimension (W×L): 120×100 mm

• Nominal Volume: 25 ml

• Recommended Fill Volume: 5 to 10 ml

• Package: 24 pcs/carton

• Catalog Number: 5412000

• Product: CryoPAC FB050

• Dimension (W×L): 120×130 mm

• Nominal Volume: 50 ml

• Recommended Fill Volume: 10 to 20 ml

• Package: 24 pcs/carton

• Catalog Number: 5414000

• Product: CryoPAC FB250

• Dimension (W×L): 120×185 mm

• Nominal Volume: 250 ml

• Recommended Fill Volume: 30 to 70 ml

• Package: 24 pcs/carton

• Catalog Number: 5415000

• Product: CryoPAC FB500

• Dimension (W×L): 120×235 mm

• Nominal Volume: 500 ml

• Recommended Fill Volume: 55 to 100 ml

• Package: 24 pcs/carton

• Catalog Number: 5416000

• Product: CryoPAC FB750

• Dimension (W×L): 120×265 mm

• Nominal Volume: 750 ml

• Recommended Fill Volume: 80 to 190 ml

• Package: 24 pcs/carton

• Material: EVA (ethylene vinyl acetate) for both main body and overwrap bag

• Temperature Range: Cryogenic storage down to -196°C; thawing at +37°C

• Sterilization: Electron-beam irradiation, individually packed

• Design Features: Overwrap bag included, integrated filling assembly, injection port, two female Luer-Lock connectors, one male Luer-Lock connector, roller clamps, secure spike ports with twist-off caps, internal protection tubes, label pouch, hanger hole

• Validation Testing: Irradiation sterilization, physics and chemistry, biocompatibility, extractables, repeated freezing and thawing, transportation

Standard Accessories included:

• One CryoPAC freezing bag main body

• One overwrap bag (EVA)

• Integrated filling assembly with injection port

• Two female Luer-Lock connectors

• One male Luer-Lock connector

• Roller clamps

• Extra-long EVA tubing for sampling

• Extra-long PVC tubing compatible with sterile connecting devices

• Optimized Y-adaptor with female Luer-Lock connector

• Two secure spike ports with sealed twist-off protective caps

• Internal protection tubes

• Label pouch

• Hanger hole

Items Excluded:

• Freezing cassettes (available separately)

• Sterile connecting devices (available separately)

• Calibration certificate (available upon request)

• Custom sizes or configurations (available upon request)

Pre-installation requirement:

• Cleanroom or sterile handling environment for bag filling and sealing

• Heat sealer for tubing closure

• Controlled-rate freezer or passive freezing container for cryopreservation

• Liquid nitrogen storage Dewar or cryogenic freezer

• Water bath or bead bath at +37°C for thawing

• Operator training on standard safety procedures for cryogenic handling is recommended

Key Benefits: Precision, Efficiency, and Safety for Your Lab

Our CryoPAC Series Freezing Bag is more than just a consumable; it is a solution designed to address the real-world challenges you face daily. We have focused on core features that deliver tangible benefits, enhancing your lab's productivity and the reliability of your cell therapy outcomes.

• Sterile and Ready to Use: Each bag, including the overwrap, is individually packed and sterilized by electron-beam irradiation, with outer packaging that can be disinfected for easy cleanroom handling. This directly solves the common pain point of maintaining a sterile workflow from cell collection to storage and thawing, giving you confidence in your sample integrity. For more information on our range of precision lab equipment, visit our website at https://os4u.com.bd/.

• Durable EVA Construction: Both the main body and overwrap bag are made of EVA, proven durable for long-term cryogenic preservation in liquid nitrogen down to -196°C. This engineering excellence reflects the manufacturer's commitment to cryogenic storage standards. You can see their full capabilities at https://www.antechscientific.com/.

• Extensive Validation Testing: Guaranteed safety through irradiation sterilization, physics and chemistry, biocompatibility, extractables, repeated freezing and thawing, and transportation testing, giving you confidence in your regulatory submissions.

• Optimized Design for Convenience: Overwrap bag for better protection, extra-long EVA tubing for quality control sampling by heat-sealing, integrated filling assembly with multiple connectors and roller clamps, and secure spike ports with internal protection tubes streamline your workflow.

• Space-Saving Shape: The overwrap bag's space-saving shape enables compatibility with existing freezing cassettes, making it a cost-effective investment for your facility.

• Label Integrity: Label pouch for written sample information ensures label integrity throughout the freeze-thaw cycle, making reporting, troubleshooting, and audits easier.

• Convenient Handling: Hanger hole on the freezing bag allows for convenient handling during filling, freezing, and thawing.

Solving the Problems That Slow Lab Work Down

We know the frustrations that come with routine cryogenic storage. The CryoPAC Series Freezing Bag is built to eliminate them.

• Struggling with bag failures at cryogenic temperatures? The EVA construction is proven durable for long-term cryopreservation down to -196°C, ensuring your samples remain protected through the complete freeze-thaw cycle.

• Concerned about contamination during filling and thawing? Each bag is individually packed and sterilized by electron-beam irradiation, with secure spike ports and internal protection tubes to inhibit perforation during cell removal.

• Tired of time-consuming quality control sampling? Extra-long EVA tubing enables sampling by heat-sealing of sample-filled tubing sections, streamlining your QC workflow.

• Need to ensure label traceability? The label pouch ensures written sample information remains intact throughout the freeze-thaw cycle, supporting your documentation and audit requirements.

By choosing this CryoPAC Series Freezing Bag, you are investing in a dependable partner for your lab's daily operations, designed to deliver cryogenic safety and reliability where it matters most.

---

Warranty & Support

We provide a 1-year manufacturer’s warranty covering parts and labor. Technical support, installation assistance, and operational training are also available. Replacement parts and consumables are available throughout the product’s service life.

Call to Action

Request a Quotation or Technical Datasheet: Contact us for more information, customized configurations, and solutions tailored to your specific requirements.
