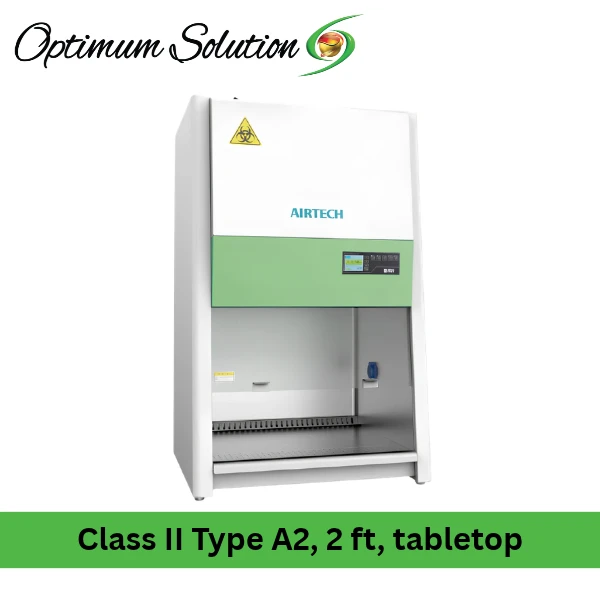

The Class II Type A2 Biological Safety Cabinet is engineered to eliminate these risks. As a cornerstone of the Class II Type A2 Biological Safety Cabinet series, this unit is built for microbiology laboratories, clinical facilities, and research institutes that require uncompromising containment. This Class II Type A2 Biological Safety Cabinet provides a reliable, reproducible environment with a 70% recirculation and 30% exhaust airflow ratio, delivering optimal protection for the operator, sample, and environment. We understand that in your line of work, biological safety is not just a feature—it is a critical necessity.

Technical Specifications

Here is a detailed breakdown of the technical capabilities for the Class II Type A2 Biological Safety Cabinet. Our models are designed to meet rigorous laboratory standards.

• Model/Part Number: BSC-654IIA2

• Nominal Size: 0.65 meter (2 ft)

• Filtration Efficiency: ≥99.995% @0.3μm (HEPA H14 standard EN1822)

• Downflow Velocity: 0.33 m/s

• Inflow Velocity: 0.53 m/s

• Noise Level: ≤60 dB(A)

• Vibration: ≤5μm (center of table top)

• Power Supply: AC220~240V, 1Φ, 50/60Hz

• Opening Height: 200 mm

• Workzone Dimensions (W×D×H): 650×562×540 mm

• Overall Dimensions (W×D×H): 750×700×1200 mm

• Weight: 110 kg

• Max Consumption (with spare socket): 0.18 kVA

• Rated Power (without spare socket): 0.15 kVA

• Illumination: ≥900 Lx

• Cabinet Materials: High-grade steel, lacquered in ivory

• Working Area Materials: SS304 fully finished

• Air Direction: Top out

• Personnel Protection: Total colony in impaction sampler ≤10 CFU/time; Total colony in slot sampler ≤5 CFU/time

• Product Protection: Total colony in culture dish ≤5 CFU/time

• Cross-contamination Protection: Total colony in culture dish ≤2 CFU/time

• Motor: DC ECM motor for 60% energy saving

• Control System: Full-color LCD screen displaying downflow & inflow air velocity, filter service life, blower operation status & alarm

• Safety Features: Intelligent constant air volume compensation, sliding window interlocked with LED light and UV lamp, negative pressure surrounding double-layer cabinet, leak prevention and filter integrity testing

• Lighting: LED 13.5W × 1; UV Light 8W × 1

Standard Accessories included:

• Biological safety cabinet main unit

• HEPA H14 main filter

• DC ECM blower

• Full-color LCD touch screen control system

• UV lamp (8W)

• LED lamp (13.5W)

• Anti-splash safety socket

• Demountable circular-arc armrest

• Power cord

• Operation manual

Items Excluded:

• Stand (optional)

• Water valve (optional)

• Vacuum valve (optional)

• ULPA H15 filter upgrade (available upon request)

• Calibration certificate (available upon request)

• Extended warranty (available for purchase)

Pre-installation requirement:

• A stable, level benchtop or stand capable of supporting the unit's 110 kg weight

• A dedicated power outlet matching the unit's specifications (AC220~240V, 50/60Hz)

• Adequate clearance around the unit for airflow exhaust and maintenance access

• Controlled laboratory environment away from strong drafts or direct sunlight

• Operator training on standard safety procedures for biological safety cabinets is recommended

Key Benefits: Precision, Efficiency, and Safety for Your Lab

Our Class II Type A2 Biological Safety Cabinet is more than just a piece of equipment; it is a solution designed to address the real-world challenges you face daily. We have focused on core features that deliver tangible benefits, enhancing your lab's safety and the reliability of your sensitive work.

• Triple Protection: The 70% recirculation and 30% exhaust airflow ratio, combined with HEPA H14 filtration, provides uncompromising protection for the operator, product, and environment. This directly solves the common pain point of exposure risks and cross-contamination when handling hazardous biological materials.

• Smart DC ECM Motor with Constant Air Volume: The DC ECM motor saves 60% energy and features an intelligent constant air volume compensation system. Even when HEPA filter resistance increases by 50%, the inflow air volume change remains less than 10%, ensuring safe operation throughout the entire life span of the filter.

• Accurate Control and Display: The full-color LCD screen displays downflow and inflow air velocities with extreme precision (0.001 m/s accuracy) using an imported Japan velocity sensor. Filter service life and blower operation status are clearly visible, with built-in alarms for safety.

• Humanized and Ergonomic Design: The compact tabletop design fits into limited spaces. The 10° sloped front, demountable circular-arc armrest, and optimized sliding window lifting system ensure comfortable operation under severe conditions.

• Safe and Reliable Construction: The negative pressure surrounding the double-layer cabinet uses "leakage resistance" and "unobstructed return air" technology. The sliding window is interlocked with the LED light and UV lamp to prevent accidental UV exposure.

• High-Quality Filter Material: Made with imported filter material, the high-efficiency filter achieves a large dust holding capacity and high uniformity. Strict cabinet leak prevention and filter integrity testing guarantee reliable performance.

To explore how this biological safety cabinet fits into your complete laboratory workflow, visit our website at Optimum Solution to explore our full range of laboratory instruments. For detailed dimensional drawings, operating manuals, and additional technical resources, you can view the Class II Type A2 product page on the manufacturer's site. For more information on biosafety levels and cabinet standards, visit the NSF/ANSI 49 standard page or the CDC biosafety guidance.

Solving the Problems That Slow Lab Work Down

We know the frustrations that come with routine cell culture and microbiology work. The Class II Type A2 Biological Safety Cabinet is built to eliminate them.

• Struggling with space constraints in your lab? The compact 2 ft tabletop design can be placed on an existing workbench, providing full Class II protection without taking up valuable floor space.

• Concerned about filter loading reducing airflow over time? The intelligent constant air volume compensation system ensures safe and stable airflow even when filter resistance increases by 50%.

• Tired of inaccurate airflow readings? The imported Japan velocity sensor provides high accuracy at 0.001 m/s, displayed clearly on the full-color LCD screen.

• Need to ensure safe UV decontamination? The UV lamp is interlocked with the sliding window and LED light, preventing accidental exposure while ensuring thorough decontamination between runs.

By choosing this Class II Type A2 Biological Safety Cabinet, you are investing in a dependable partner for your lab's daily operations, designed to deliver biological safety and intelligent operation where it matters most.

---

Warranty and Support

We provide a 1-year manufacturer’s warranty covering parts and labor. Technical support, installation assistance, and operational training are also available. Replacement parts and consumables are available throughout the product’s service life.

Call to Action

Request a Quotation or Technical Datasheet: Contact us for more information, customized configurations, and solutions tailored to your specific requirements.
