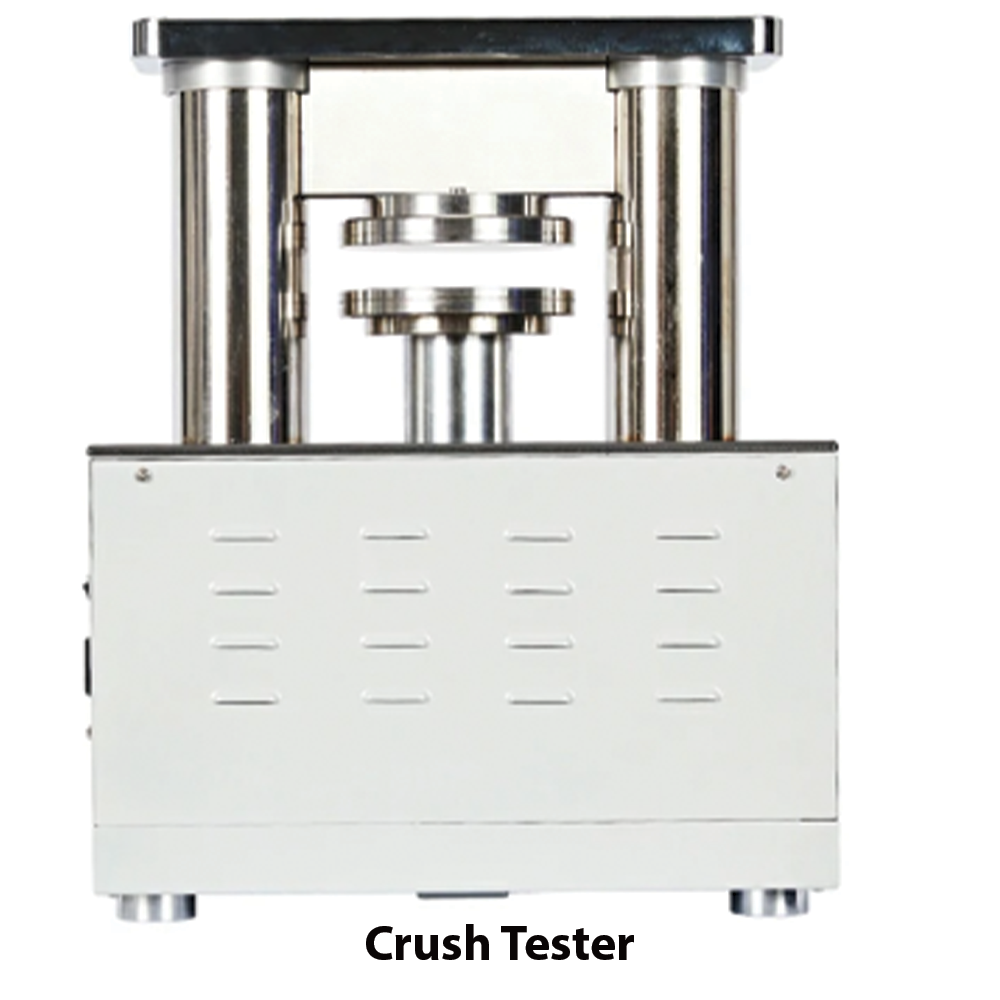

Struggling with unpredictable packaging failures, inconsistent compressive strength readings, or complex test setups for different ISO standards? Packaging manufacturers and quality control laboratories frequently face the challenge of evaluating corrugated board durability under strict international guidelines. Implementing an advanced automated Cardboard Crush Tester material analysis system directly resolves these workflow hurdles by consolidating ring crush, edge crush, peel strength, and flat compression tests into one highly intuitive device.

Technical Specifications

• Model Number: MSYTYS3000ASWISS

• Product Part Number: 3000A-SWISS

• Measuring Range: 10 to 3000 N customizable up to 5000 N

• Force Resolution: 0.1 N ensuring exact strength readings

• Indication Error Margin: ± 0.5 percent

• Measurement Repeatability: Less than or equal to 0.5 percent

• Test Speed: 12.5 ± 1 mm per minute adjustable up to 500 mm per minute

• Test Return Speed: 500 mm per minute

• Platen Displacement Speed: 200 mm per minute

• Parallelism of Upper and Lower Platens: Less than or equal to 0.03 mm

• Maximum Distance Between Plates: 80 mm

• Display Interface: 7 inch color touch screen with bilingual options

• Processor Type: Advanced 32-bit ARM processor for rapid data handling

• Print Capability: Built-in thermal micro printer operating without ink

• Power Supply Requirements: 100 to 240 V at 50 or 60 Hz consuming 100 W

• Operating Temperature: 10 to 35 degrees Celsius

• Operating Humidity: Relative humidity less than 85 percent

• Physical Dimensions: 410 by 410 by 550 millimeters

• Total Equipment Weight: 67 kilograms

Key Benefits and Solving Lab Challenges

Quality assurance technicians often lose critical time executing manual force calculations or dealing with equipment that fails to protect its own delicate sensors from overload damage. This device completely eliminates these operational pain points. By utilizing a high precision Cardboard Crush Tester force measurement platform, operators benefit from a heavy-duty ball screw drive and dual guide shafts that guarantee flawless platen parallelism. This absolute mechanical stability ensures perfectly reproducible compressive force measurements across every sample batch.

Equipment failure during high-volume testing is a major vulnerability for any facility aiming for uninterrupted production. This instrument actively prevents mechanical damage through its intelligent over-range protection, which instantly resets the device before delicate weighing sensors can be compromised. This virtually eliminates costly downtime, maintenance delays, and the need for frequent recalibrations.

Core Operational Features

Every unit is engineered to maximize testing throughput while maintaining strict compliance with GB, ISO, and TAPPI standards.

• Multi-Functional Testing Capabilities: Seamlessly evaluates RCT, ECT, PAT, FCT, and CMT parameters to ensure complete structural integrity of paper cores and corrugated base materials without needing multiple machines.

• Advanced Data Management: The embedded ARM processor automatically calculates statistical values including averages, standard deviations, and coefficients of variation, acting as a versatile Cardboard Crush Tester that safeguards your critical test data even during unexpected power losses.

• Noise-Free Thermal Printing: Generates immediate, ink-free physical reports directly on the laboratory floor, ensuring full traceability without the constant expense of replacing printer ribbons.

• Flexible Unit Conversions: Operators can instantly toggle between Newtons, kilogram-force, and pound-force with a single touch, effortlessly adapting to international reporting requirements and client specifications.

Upgrade Your Quality Control Workflow

Modern packaging manufacturing demands instruments that deliver uncompromising accuracy, rapid sample processing, and absolute regulatory compliance. Integrating a standardized Cardboard Crush Tester into your quality control regimen ensures your facility remains highly efficient and your corrugated products survive the harshest supply chain environments. Invest in an industrial grade Cardboard Crush Tester quality control solution today to streamline your complex material evaluation protocols, eliminate costly operational downtime, and achieve absolute confidence in every single structural strength report.
