Aerosol Can Burst Tester: Can Pressure Resistance Tester - 0 to 40 bar - ±0.5% FS

(0 reviews)

Inhouse product


Price
৳3,299,995.00 ৳3,300,000.00 /Set
Quantity
Total Price
Share

Reviews & Ratings

0 out of 5.0
(0 reviews)
There have been no reviews for this product yet.

Introduction

Aerosol cans that burst in transport or use cause recalls and injuries. The AT2E ACBT-1 aerosol can burst tester pressurises cans in a closed chamber up to 40 bar and records the exact burst pressure.

Technical Specifications

Here are the main technical specifications of the AT2E ACBT-1 Aerosol Can Burst Tester from the supplier data:

  • Model: ACBT-1 (AT2E)
  • Pressure range: 0 to 40 bar
  • Accuracy: ±0.5% FS
  • Resolution: 0.01 bar / 0.1 psi / 0.01 kg/cm²
  • Units: bar, psi, kg/cm²
  • Can aperture: 25.4 mm (1 inch)
  • Max. can size: Ø66 mm x 300 mm
  • Can types: 3-piece and mono-block

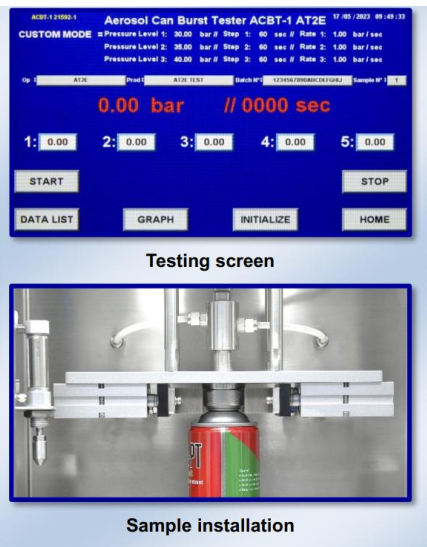

  • Control: PLC with touch screen; fill ramp, burst and custom cycles
  • Memory: 1000 results; RS232 export; 10 operators, 30 products
  • Dimensions: 730 x 500 x 870 mm; weight 80 kg
  • Material: stainless steel
  • Utilities: AC 220 V (110 V optional), air 5 to 8 bar

Standard Accessories Included

  • ACBT-1 burst tester
  • Can clamping fixture
  • User manual

Items Excluded

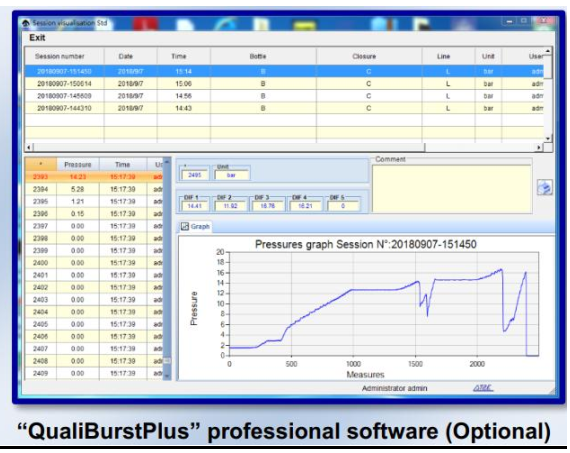

  • QualiBurstPlus software (optional)
  • Air compressor
  • Any item not listed above, confirmed at quotation

Pre-installation Requirement

  • Compressed air supply at 5 to 8 bar.
  • Water supply for the filling system.
  • AC 220 V supply and drain point.

Key Benefits

How the AT2E ACBT-1 Aerosol Can Burst Tester helps your daily work:

Efficiency

Auto-clamping and auto water filling make each test quick to set up.

Accuracy

Linear pressurisation and ±0.5% FS sensors give repeatable burst values.

Safety and comfort

A door interlock and enclosed chamber protect operators during bursts.

You can also see our aerosol can testing instruments.

Key Features

Key features of the AT2E ACBT-1 Aerosol Can Burst Tester:

  • 0 to 40 bar range
  • PLC touch screen
  • Live pressure curve
  • 1000-result memory
  • Door interlock

Solving Common Lab Problems

Common problems the AT2E ACBT-1 Aerosol Can Burst Tester helps you solve:

Worried about can failures in the market? Test burst pressure on every lot.

Manual testers give mixed results? Automatic ramps make tests repeatable.

Operator safety concerns? The closed, interlocked chamber protects staff.

Warranty & Support

We provide a 1-year manufacturer's warranty covering parts and labor. Technical support, installation assistance, and operational training are also available. Replacement parts and consumables are available throughout the product's service life.

Request a Quotation or Technical Datasheet

Request a Quotation or Technical Datasheet: Contact us about the AT2E ACBT-1 Aerosol Can Burst Tester for your laboratory for more information, customized configurations, and solutions tailored to your specific requirements.
