Precision Material Analysis Starts Here

Struggling with inconsistent test outcomes or equipment that slows down your research? For laboratories that handle metals, plastics, wood, adhesives, and composites, every measurement must be repeatable and verifiable. The high‑performance Electromechanical Testing Machine with 50KN capacity delivers closed‑loop control for tension, compression, flexure, peel, and shear tests – all in one rugged system. Below you will find the exact technical parameters that make this universal tester a reliable partner for quality control and R&D.

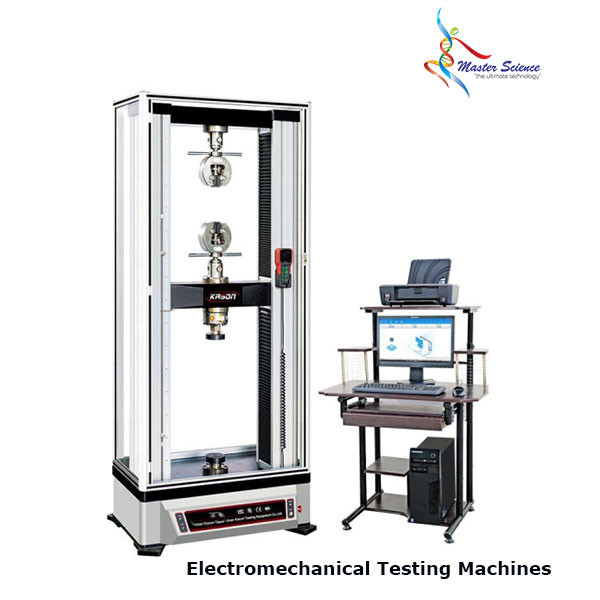

Technical Specifications (Model MSETM504WE50kNSWISS)

• Model Number: MSETM504WE50kNSWISS

• Maximum Load Capacity: 50KN using a universal strain‑gage load cell

• Crosshead Travel (Testing Space): 1100mm

• Maximum Tensile Testing Space: 770mm

• Maximum Compression Testing Space: 1000mm

• Test Width: 450mm

• Deformation Measuring Range: 0.2% to 100% Full Scale (FS)

• Deformation Accuracy: ≤ ±0.5%

• Displacement Resolution: 0.04μm

• Crosshead Speed Range: 0.001 to 1000mm/min

• Control System: EDCH 550 full digital closed‑loop control

• Machine Dimensions: 850 x 585 x 1824mm

• Approximate Weight: 420kg

• Power Supply: 1ph, 0.75KW, AC220V±10%, 50Hz/60Hz

Included Test Fixtures & Accessories

• Three‑Point Bending Test Rig (10KN) – For flexural strength of wood, adhesives, and composites

• Tensile Strength Grips – Jaw opening 14mm, suitable for metals and non‑metals

• Shear Strength Tester – Lap shear measurement for bonded surfaces and wood samples

• Peel Tester (90°/180°) – For tapes, double‑sided adhesives, and packaging materials

• Mechanical Cutter / Die Cutter – Model MSZYJ60SWISS automatic dumbbell sample cutter (2200W, 4000 rpm, 305mm blade)

Key Benefits – Faster, Safer, and More Reliable Testing

This Electromechanical Testing Machine transforms daily lab workflows through three core advantages:

Efficiency – The EDCH 550 control system automatically records load‑displacement curves and test data. You no longer waste hours manually logging results or recalibrating sensors.

Accuracy – With 0.04μm displacement resolution and ±0.5% deformation accuracy, even subtle material behaviours become visible. This eliminates the “variable sample separation” problem that plagues lower‑grade testers.

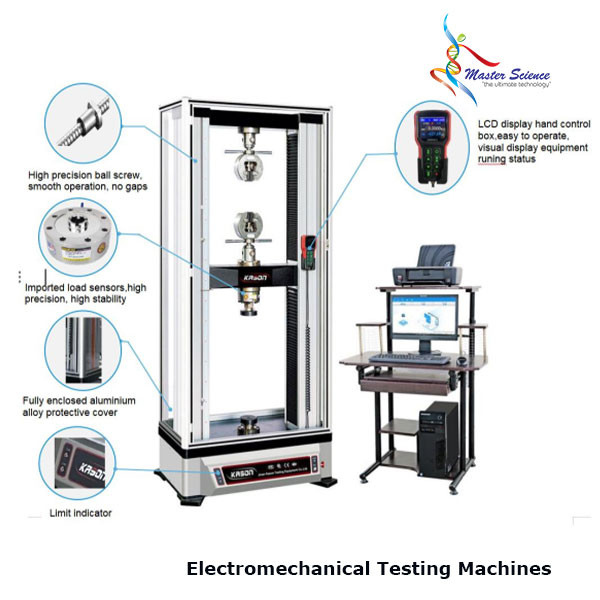

Safety – A fully enclosed aluminium alloy cover plus multi‑layer software limits protect operators during destructive testing. Hardware over‑load, over‑current, and under‑voltage protection further reduce accident risks.

Solving Common Laboratory Pain Points

Pain point: Time‑consuming processes and frequent equipment stops
The integrated servo motor and ball screw drive ensure smooth, repeatable motion. Because the system pre‑vents unplanned downtime through built‑in diagnostics, your team spends less time troubleshooting and more time testing.

Pain point: Inconsistent results from different operators
All critical parameters (speed, zero point, gain) are software‑controlled. This means your reliable Electromechanical Testing Machine delivers identical test conditions every single time – regardless of who presses “start”.

Pain point: Limited flexibility for varied sample types
Swapping between tensile, shear, peel, and bending fixtures takes minutes. The included 10KN bending rig, 90°/180° peel tester, and wood shear grips make this versatile Electromechanical Testing Machine suitable for adhesives, plastics, textiles, metals, and composites without purchasing extra adapters.

Feature Spotlight – What Makes This Tester Stand Out

• Wide speed range (0.001 – 1000 mm/min) – From slow creep tests to rapid strength evaluations

• Large test width (450mm) – Accommodates bulky samples like geotextiles or large panels

• Automatic dumbbell sample cutter (MSZYJ60SWISS) – Prepares standardised specimens in seconds, eliminating manual cutting errors

• Computer + printer ready – Full test software included for data export and certificate printing

Technical Support & Compatibility

The system operates on standard AC220V and includes a user‑friendly interface with a 320x240 LED display. You can monitor load, displacement, and speed directly on the machine or via the connected PC. Calibration routines are guided and traceable to international standards.

Ready to Upgrade Your Material Testing Lab?

Stop accepting unreliable data or slow turnaround. Whether you test adhesives for aerospace, wood for construction, or polymers for medical devices, this powerful Electromechanical Testing Machine provides 50KN of precise control with 1100mm of travel. Order model MSETM504WE50kNSWISS today and receive all five fixtures plus the automatic cutter in one complete package.

Contact our lab equipment specialists for a custom quote or a live demonstration of the closed‑loop control software.
