Introduction to High-Temperature Drying Solution

When your laboratory protocols demand consistent, precise heat application up to 300°C, standard ovens often fall short. Inconsistent temperature distribution can compromise sample integrity, lead to unreliable test results, and ultimately cost you time and resources.

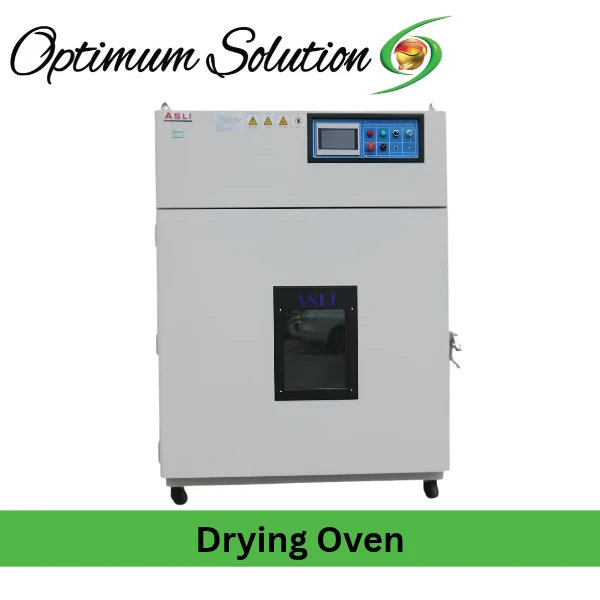

The 300°C High Temperature Drying Oven is engineered to eliminate these variables. As a cornerstone of the 300°C High Temperature Drying Oven series, this unit is built for laboratories and research institutes that require unwavering performance for drying, baking, heat treatment, and sterilization processes. This 300°C High Temperature Drying Oven provides a reliable, reproducible environment for your most critical thermal applications. We understand that in your line of work, precision is not just a feature—it is a necessity.

Technical Specifications

Here is a detailed breakdown of the technical capabilities for the 300°C High Temperature Drying Oven. Our models are designed to meet rigorous laboratory standards.

• Model/Part Number: RHD-45

• Internal Dimension (W×H×D): 450×400×400 mm

• External Dimension (W×H×D): 650×900×550 mm

• Model/Part Number: RHD-60

• Internal Dimension (W×H×D): 500×600×500 mm

• External Dimension (W×H×D): 700×1200×650 mm

• Model/Part Number: RHD-90

• Internal Dimension (W×H×D): 600×900×500 mm

• External Dimension (W×H×D): 850×1600×700 mm

• Model/Part Number: RHD-120

• Internal Dimension (W×H×D): 800×1200×700 mm

• External Dimension (W×H×D): 1200×1680×900 mm

• Interior Material: SUS 304# stainless steel

• Exterior Material: Stainless steel or cold-rolled steel with paint coating

• Temperature Range: Room Temperature (R.T.) to 200°C (300°C to 500°C optional)

• Indication Resolution: 0.1°C

• Temperature Distribution Uniformity: ±2.0°C (at 100°C)

• Control Accuracy of Temperature: ±0.5°C

• Temperature Rising Velocity: Approx. 35 minutes from R.T. to 200°C

• Control Method: Micro PID + SSR + Timer

• Storage Shelf: Two layers

• Viewing Window: Included for models with temperature range up to 200°C

• Power Supply: AC 220V 50/60Hz or AC 380V 50/60Hz

Standard Accessories included:

• Two layers of stainless steel storage shelves

• Viewing window (for models operating up to 200°C)

• Operation manual

• Power cable

Items Excluded:

• Programmable LCD touch screen controller (optional)

• Inert gas filling kit (optional)

• Calibration certificate (available upon request)

• Extended warranty (available for purchase)

Pre-installation requirement:

• A stable, level surface with sufficient load-bearing capacity

• A dedicated power outlet matching the unit's specifications (AC 220V or 380V)

• Adequate ventilation and clearance around the unit for heat dissipation

• Operator training on standard safety procedures for high-temperature equipment is recommended

Key Benefits: Precision, Efficiency, and Safety for Your Lab

Our 300°C High Temperature Drying Oven is more than just a piece of equipment; it is a solution designed to address the real-world challenges you face daily. We have focused on core features that deliver tangible benefits, enhancing your lab's productivity and the reliability of your outcomes.

• Consistent and Reliable Results: The Micro PID control system, combined with a circulation fan, ensures exceptional temperature uniformity (±2.0°C at 100°C) and control accuracy (±0.5°C). This directly solves the common pain point of inconsistent results caused by temperature fluctuations, giving you confidence in your data. For more information on our range of precision lab equipment, visit our website at https://os4u.com.bd/.

• Enhanced Lab Efficiency: The rapid heating capability, reaching 200°C in approximately 35 minutes, reduces waiting time between experiments. The digital temperature display with an LED panel and a built-in timer allows for precise program setting and unattended operation, freeing up your time for other tasks.

• Built for Durability and Safety: The interior is constructed from robust SUS 304# stainless steel, ensuring longevity and resistance to corrosion. The excellent thermal insulation of the oven walls not only minimizes energy consumption but also enhances operator safety by keeping exterior surfaces cooler. This engineering excellence is a hallmark of ASLi's 28 years of manufacturing experience. You can see their full capabilities at https://www.aslitesting.com/.

• Versatile Application: Designed to perform a wide array of applications including drying, baking, heat treatment, and sterilization, this single unit can serve multiple functions in your lab, making it a cost-effective investment for your facility.

Addressing Common Lab Challenges

We know you are busy. That is why this 300°C High Temperature Drying Oven is built to handle the most common frustrations in the lab.

• Struggling with variable sample separation? The precise PID controller and fan-forced air circulation mean every part of your sample is treated identically, eliminating variability and ensuring reproducible outcomes.

• Concerned about equipment downtime? The durable stainless steel construction and robust control system are built for the long haul, minimizing the risk of unexpected breakdowns and protecting your workflow.

• Tired of time-consuming processes? The fast heating rate and user-friendly digital controls streamline your testing process, allowing you to complete runs faster and more efficiently.

By choosing this 300°C High Temperature Drying Oven, you are investing in a dependable partner for your lab's daily operations, designed to deliver accuracy and reliability where it matters most.

Warranty & Support

We are committed to your success. We provide a 1-year manufacturer’s warranty covering parts and labor. Technical support, installation assistance, and operational training are also available. Replacement parts and consumables are available throughout the product’s service life.

Call to Action

Request a Quotation or Technical Datasheet: Contact us for more information, customized configurations, and solutions tailored to your specific requirements.
