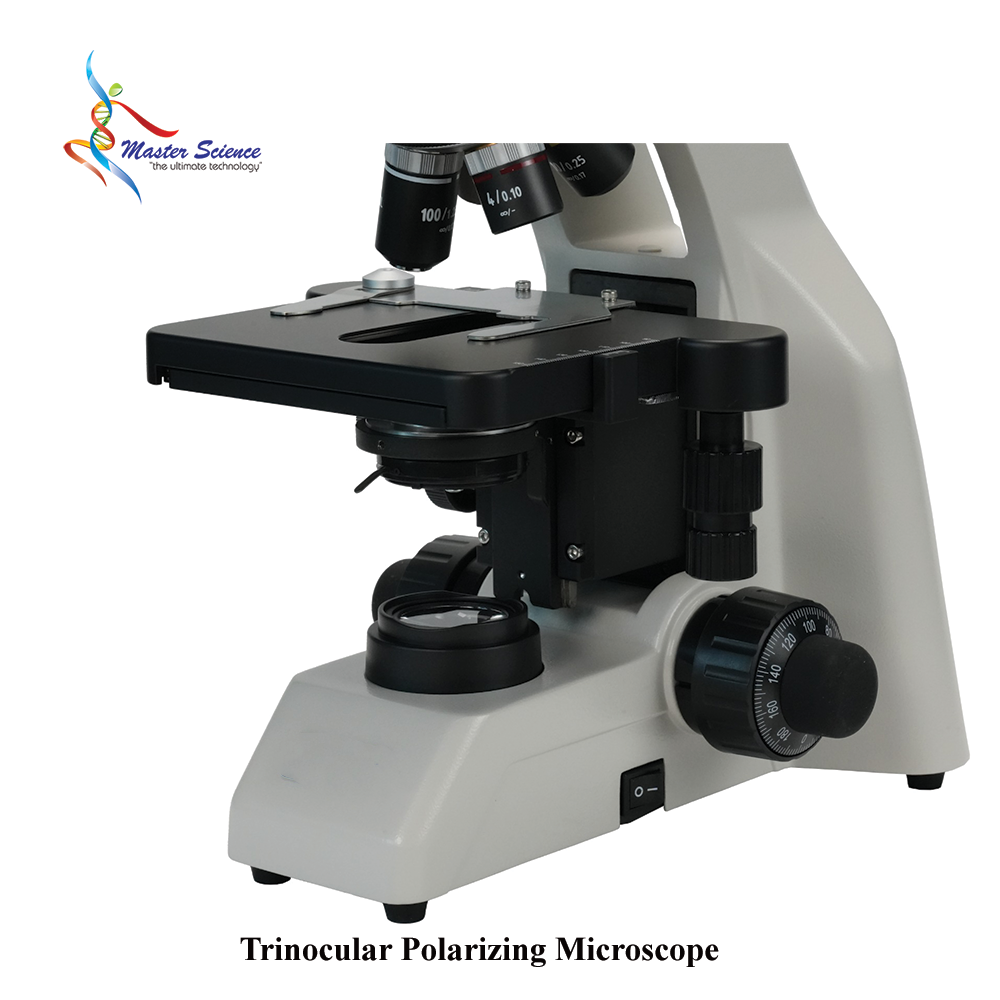

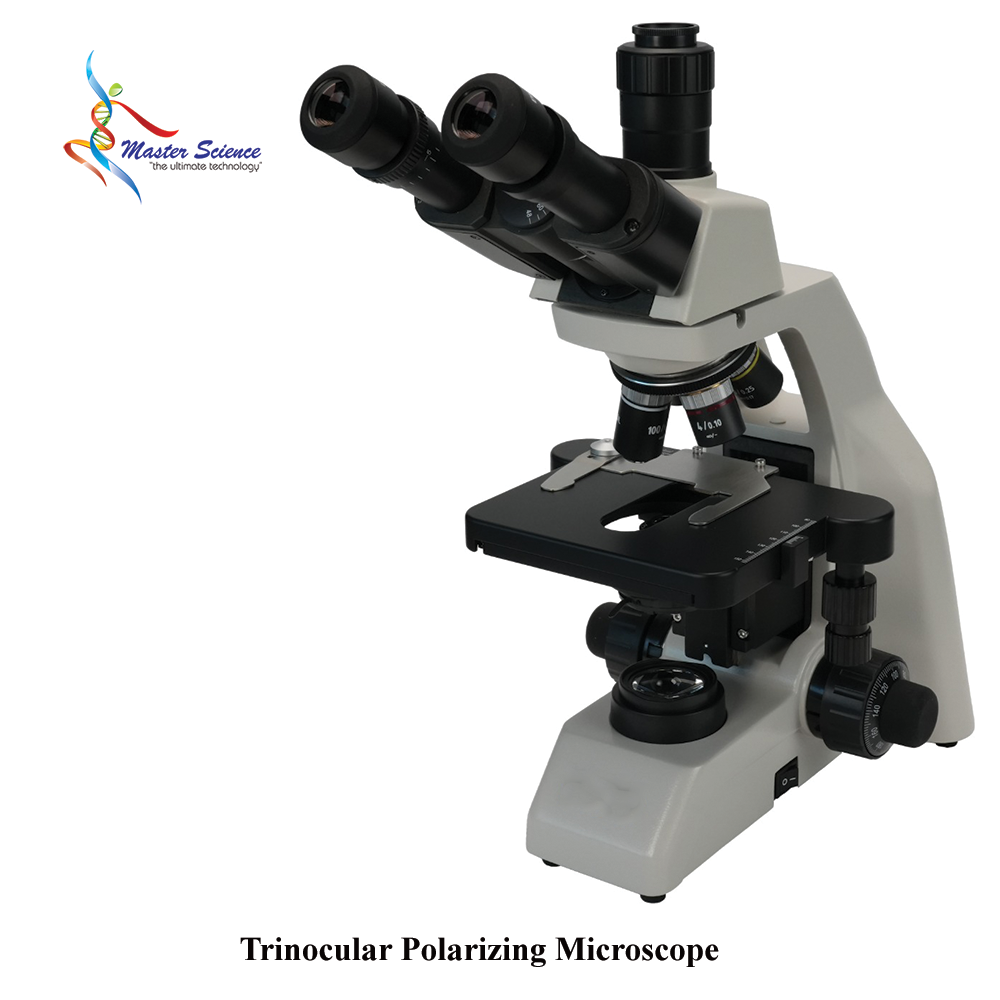

Trinocular Polarizing Microscope with Digital Camera, PC and Software

Model: MSBS2052BTSWISS

Introduction:

The MSBS2052BTSWISS is a classic biological microscope designed with an ingenious stand, high-definition optical system, and sharp imaging capabilities. It is engineered to provide users with an enjoyable and comfortable experience during operation, suitable for a wide range of laboratory and industrial applications.

Key Features:

1. High Contrast & Sharp Image: Equipped with a superior quality optical system, this microscope delivers high-contrast, sharp images for precise observations.
2. Anti-Mould Technology: Designed for use in various environments, the anti-mould technology ensures durability and consistent performance even in humid conditions.
3. Ergonomic Design: The coarse and fine adjustment knobs are positioned for comfortable, low-effort use, allowing for smooth operation during long periods of observation.
4. ECO Function (Optional): Energy-saving function that automatically turns off the microscope after 15 minutes of inactivity.
5. Cord Rest: A cord management feature on the back ensures a clean and organized workspace.

Applications:

This microscope is ideal for applications in textile industries, fiber analysis, pharmacology, and genetics. Its wide range of uses makes it a versatile tool in:

• Textile industries and laboratories

• Textile academies, colleges, and universities

• Research centers for pharmacological and genetic studies

Package Includes:

• Trinocular Microscope: Comes with Infinite Plan objectives: 4X, 10X, 20X (3 pcs), 40X, and 100X.
• C-mount Adapter: 0.45X C-mount adapter for easy camera integration.
• Simple Polarization Set: For enhanced contrast and polarization techniques.
• Camera: Model MSBUC5F830ECSWISS, a USB 3.0 C-mount CMOS Color Digital Camera with 8.3MP resolution (1/1.2" sensor).

This microscope offers exceptional versatility and quality for professionals working in textile analysis, pharmacology, genetics, and related fields.

Specifications for Trinocular Polarizing Microscope with Digital Camera and Software

Model: MSBS2052BTSWISS

• Optical System: Infinite optical system for exceptional clarity.
• Eyepiece: WF10×/20mm wide field eyepiece.
• Viewing Head: Seidentopf binocular head, inclined at 30°, interpupillary distance 47-78mm.
• Objective Lenses: Infinite semi-plan achromatic objectives – 4×, 10×, 20× (3 pieces), 40×, 100×.
• Nosepiece: Backward quadruple nosepiece.
• Stage: Rackless double-layer mechanical stage (150mm × 139mm), moving range 75mm × 52mm.
• Condenser: Abbe condenser NA1.25.
• Focusing System: Coaxial coarse and fine adjustment, fine division of 0.002mm, moving range of 25mm.
• Illumination: S-LED illumination with adjustable brightness.
• Accessories: Polarizing set included.

This microscope is designed for precision and versatility, making it suitable for applications in fiber analysis, pharmacology, and genetics.

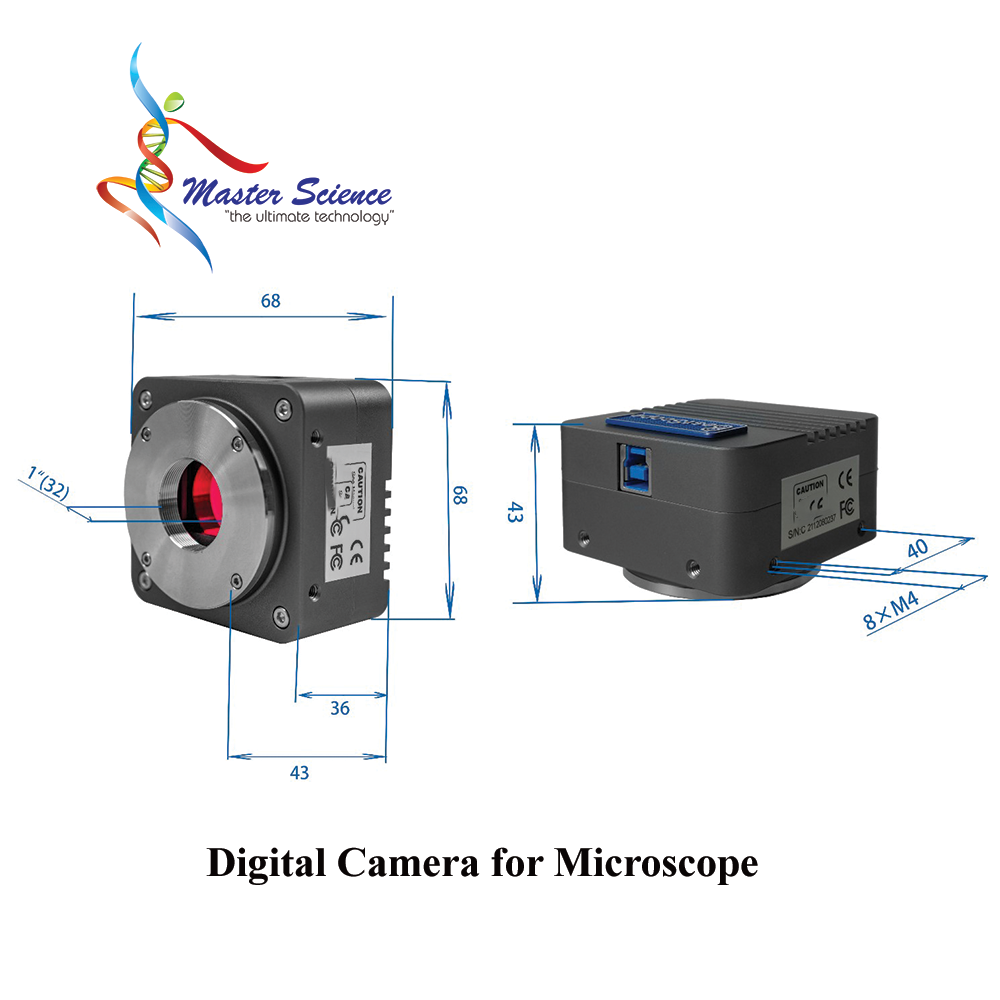

USB3.0 C-mount CMOS Color Digital Camera

Model: MSBUC5F830ECSWISS

Introduction:

The MSBUC5F830ECSWISS digital camera utilizes a CMOS sensor for capturing images, with USB3.0 serving as the data transfer interface. Encased in a compact, durable CNC aluminum alloy housing, this camera is designed for high-speed image and video processing. It integrates 12-bit Ultra-fine™ Hardware Image Signal Processor Video Pipeline (HISP VP), which takes over various processing tasks like demosaicing, exposure, gain adjustment, white balance, and more. This setup greatly reduces the processing load on the PC, enhancing the overall speed.

The camera is equipped with ImageView software for advanced video and image processing and supports multiple platforms such as Windows, Linux, macOS, and Android, offering flexibility in a wide range of environments.

Key Features:

1. Exmor R (Back-illuminated) & Exmor RS CMOS Sensor with USB3.0 interface.
2. Real-time 8/12-bit depth switch for dynamic imaging adjustments (sensor-dependent).
3. Ultra-fine™ HISP VP and USB3.0 (5 Gbps) for high frame rate performance.
4. High Sensitivity: Up to 8935mV for exceptional low-light performance (IMX482 sensor).
5. Low Noise & Power Consumption: Achieved via column-parallel A/D conversion technology.
6. Hardware Resolution: Range from 2.0M to 45M pixels.
7. Shutter Options: Available in Rolling Shutter or Global Shutter configurations.
8. C-Mount Compatibility: Standardized mount for easy integration with microscopes and other equipment.
9. Durable Construction: CNC aluminum alloy housing provides robust protection.
10. ImageView Application: Advanced video and image processing capabilities.
11. Multi-Platform SDK Support: Available for Windows, Linux, macOS, and Android.
12. Development Support: Includes SDKs for Native C/C++, C#/VB.Net, DirectShow, Twain, LabView, etc.

Applications:

The MSBUC5F830ECSWISS camera is ideal for bright field, dark field, fluorescent light imaging, and normal microscope image capture and analysis. Its high sensitivity, low noise, and rapid data transfer rates make it perfect for environments where high frame rates and detailed image quality are critical.

Specifications for USB3.0 C-mount CMOS Color Digital Camera

Model: MSBUC5F830ECSWISS

• Order Code: MSBUC5F830ECSWISS
• Sensor & Size (mm): 8.3M / IMX678 (Color), 1/1.8” (7.68 × 4.32 mm)
• Pixel Size (μm): 2.0 × 2.0
• G Sensitivity: 3541 (mV/lx/s)
• Dark Signal: 0.15mV with 1/30s exposure
• FPS/Resolution: 45 FPS @ 3840 × 2160, 70 FPS @ 1920 × 1080
• Binning: 1 × 1, 2 × 2
• Exposure Range: 0.02ms to 15s
• Spectral Range: 380-650nm (with IR-cut filter)
• White Balance: ROI White Balance / Manual Temp Tint Adjustment (Not applicable for Monochrome sensors)
• Color Technique: Ultra-fine™ HISP VP (Not applicable for Monochrome sensors)
• Capture/Control API: Windows/Linux/macOS/Android Multiple Platform SDK
• Recording System: Still picture and movie
• Cooling System: Natural cooling
• Operating Temperature: -10°C to 50°C
• Storage Temperature: -20°C to 60°C
• Operating Humidity: 30% to 80% RH
• Storage Humidity: 10% to 60% RH
• Power Supply: DC 5V via PC USB port
• Operating System: Microsoft® Windows® 10 / 11 (64-bit)
• PC Requirements: Intel Core i5 CPU, 16 GB memory, USB3.0 high-speed port, 17” display, CD-ROM
• Dimension: CNC aluminum alloy housing, no moving parts, built-in IR-CUT filter for durability
• Standard Packing List: Camera, USB 3.0 cable, CD (Driver & utilities)

This camera is built for high-performance imaging with excellent durability and versatility for multiple operating systems.
