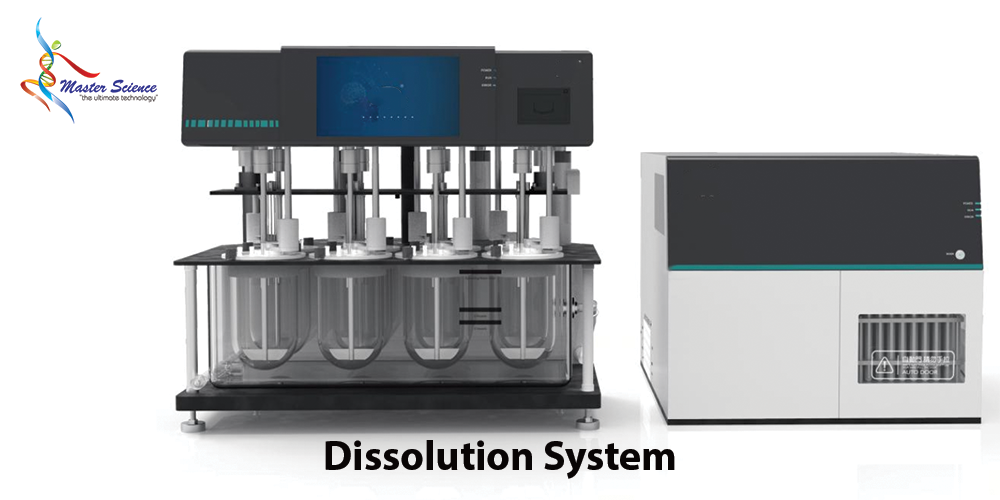

The MSMDS2008SWISS is an advanced dissolution tester apparatus designed for lab and pharmaceutical applications. This instrument employs an 8-channel imported syringe pump, enabling high-precision, fully automated processes such as dissolution, sampling, replenishment, and dilution. The MSMDS2008SWISS adheres to and exceeds the requirements of major pharmacopoeias, including the Chinese Pharmacopoeia and the United States Pharmacopoeia, as well as international guidelines and standards for drug dissolution testing.

Key Features

• Dissolution Methods: Compatible with basket, paddle, small cup, paddle butterfly, and rotating drum methods. The system allows easy switching between a 6-cup or 8-cup setup via software, ensuring consistent isothermal rehydration.
• Stirring Shaft Design: Features a segmented shaft design that eliminates the need to re-adjust the basket or paddle height when switching dissolution methods, enhancing ease of use.
• Photosensitive Lighting: Equipped with adjustable white and red light illumination to protect photosensitive drugs, with three levels of brightness available.
• Dosing System: A versatile dosing system capable of simultaneous or sequential dosing, with customizable intervals for sequential dosing.
• Water Bath System: Includes a square integrated sink with arc corners for easy cleaning and a bottom drain for complete drainage. The ceramic heating tube ensures safe and reliable heating, with over-temperature and water shortage alarms.
• Software System: Supports more than 100 experimental programs that can be imported/exported via USB. The system includes user account management with three levels of access (administrator, advanced user, and operator), built-in thermal printer, log function, and audit tracking.
• Alarm System: Features power-on self-check, operation monitoring, fault diagnosis, and alarm recording functions.
• Reservation Function: Allows for pre-scheduled heating.

Technical Specifications

• Water Bath Heating Range: RT-45℃
• Temperature Resolution: 0.01℃
• Temperature Control Accuracy: ≤ 0.2℃
• Stirring Speed Range: 25RPM-250RPM
• Speed Resolution: 0.1RPM
• Speed Accuracy: ≤±0.5RPM
• Basket (Paddle) Shaft Swing Amplitude: ≤0.5mm
• Basket Swing Amplitude: ≤1.0mm
• Shaft and Dissolution Cup Shaft Deviation: ≤1.0mm
• Dissolution Instrument Levelness: ≤ 0.5
• Basket (Paddle) Shaft Verticality: ≤ 0.5
• Power Supply: 220Vac±10% 1300W
• Dimensions: 670x600x650mm
• Weight: 65kg
• EMC Compliance: IEC6100-4-2, IEC6100-4-4, IEC6100-4-5, IEC6100-4-11

Applications

The MSMDS2008SWISS is ideal for laboratories and pharmaceutical companies focused on drug dissolution testing, providing reliable, high-precision results in compliance with international standards.
